Lowest Price GuaranteeRod EyeRight Hand Thread

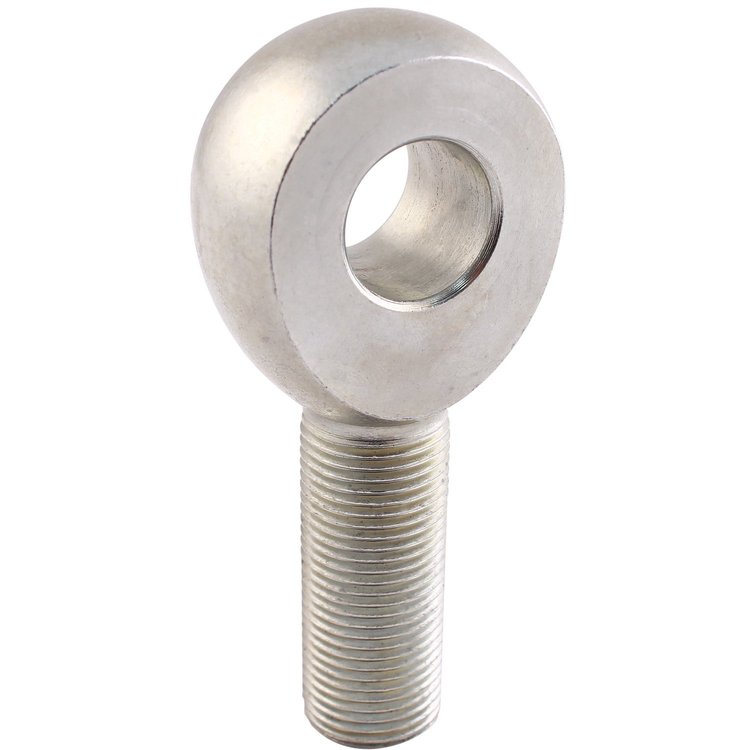

- Rod Eye Rod End
- Bore: 5/8"
- Thread: 3/4"-16 RH
- Chrome-Plated Carbon Steel
ROD EYE 1045 CP , RH 5/8-3/4 1 1/2 DIA
Part TypeRod End
BrandQA1
Package Height1.3
Package Width2.0
Package Length4.0
Weight0.55 PG
Part CategoryPerformance Parts
Rod End AttachmentMale Threads
Rod End FinishZinc plated
Thread Length1.65 in (41.9 mm)
Rod End Head Bore Size0.625 in (15.9 mm)
Rod End Thread Size (In.)3/4-16 RH
QuantitySold individually
Rod End Centerline Length2.5 in (63.5 mm)
Jam Nut IncludedNo
Rod End Head Diameter1.5 in (38.1 mm)
Rod End Ball Width0.875 in (22.2 mm)
Grease FittingNo
Rod End Construction1-piece
Heat-TreatedNo
Rod End Head Width0.875 in (22.2 mm)
Rod End MaterialCarbon steel
Rod End StyleSolid
Part FitmentUniversal
Vendor Part NumberRER10-12
Package Qty1
Package TypeEA
