Product Discontinued
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

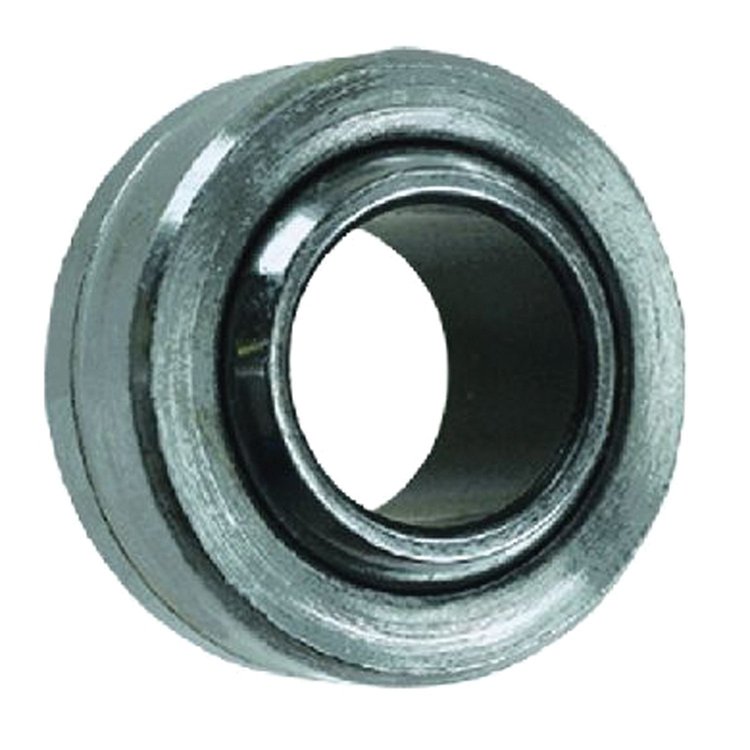

SIB Series BearingBearing (Sib) Steel Ht Cp/ Ss Ht 5/8
QA1 SIB10 Features:
The SIB and SIB-T Series spherical bearings are QA1's top of the line commercial spherical bearing. Offering better wear characteristics than their traditional carbon steel counterparts, these spherical bearings are made from Stainless Steel and are corrosion resistant. They are also available with an optional self-lubricating PTFE liner (SIB-T Series). The ball is made from 52100 bearing steel that has been heat treated, hard chrome plated and precision ground. The optional PTFE liner is self-lubricating and the race is heat treated, oil coated stainless steel.
- Wide selection for a variety of uses
- Available in chromoly or stainless
- Huge selection of inch and metric sizes
Part TypeSuspension Bearing
BrandQA1
Package Height1.0
Package Width2.0
Package Length2.0
Weight0.2 PG
Part CategoryPerformance Parts
Ult. Static Radial Load (Lbs.)37,935
Race Width0.562 in (14.3 mm)
Receiver Race Diameter1.313 in (33.4 mm)
Rod End Bearing MaterialSteel
QuantitySold individually
Inner Ball Diameter0.625 in (15.875 mm)
Rod End Ball Diameter1.125 in (28.6 mm)
Chamfer Reference0.03 in (0.762 mm)
Part FitmentSemi Universal
Rod End Misalign Angle (Deg)12 degrees
Inner Ball Width0.75 in (19.05 mm)
Vendor Part NumberSIB10
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
