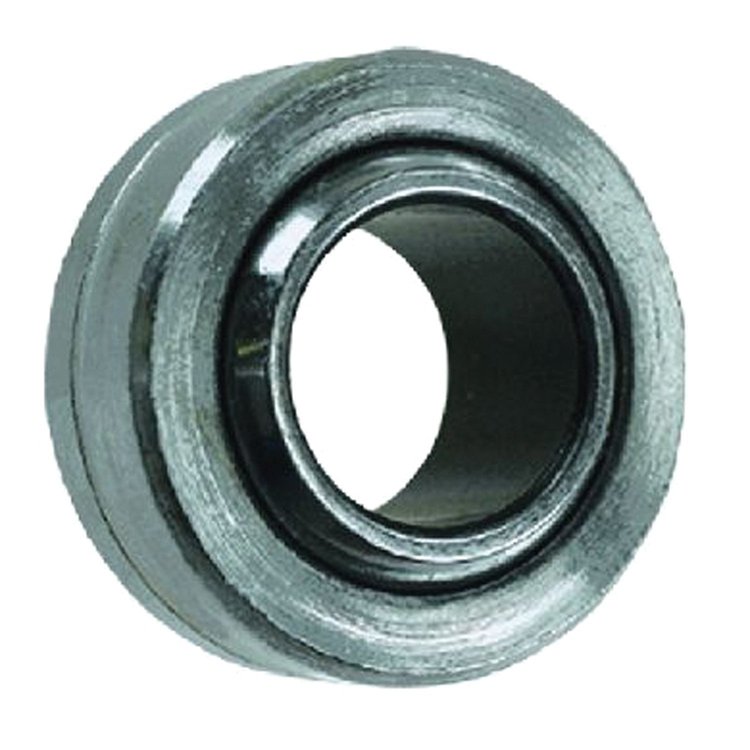

SIB Series BearingBearing (Sib) Steel Ht Cp/ Ss Ht 3/8
QA1 SIB6 Features:
The SIB and SIB-T Series spherical bearings are QA1's top of the line commercial spherical bearing. Offering better wear characteristics than their traditional carbon steel counterparts, these spherical bearings are made from Stainless Steel and are corrosion resistant. They are also available with an optional self-lubricating PTFE liner (SIB-T Series). The ball is made from 52100 bearing steel that has been heat treated, hard chrome plated and precision ground. The optional PTFE liner is self-lubricating and the race is heat treated, oil coated stainless steel.
- Wide selection for a variety of uses
- Available in chromoly or stainless
- Huge selection of inch and metric sizes
Part TypeSuspension Bearing
BrandQA1
Package Height0.5
Package Width0.84
Package Length0.84
Weight0.06 PG
Part CategoryPerformance Parts
Ult. Static Radial Load (Lbs.)17,516
Race Width0.406 in (10.3 mm)
Receiver Race Diameter0.844 in (21.4 mm)
Rod End Bearing MaterialSteel
QuantitySold individually
Inner Ball Diameter0.375 in (9.525 mm)
Rod End Ball Diameter0.719 in (18.3 mm)
Chamfer Reference0.02 in (0.508 mm)
Part FitmentSemi Universal
Rod End Misalign Angle (Deg)9.5 degrees
Inner Ball Width0.5 in (12.7 mm)
Vendor Part NumberSIB6
Package Qty1
Package TypeEA
