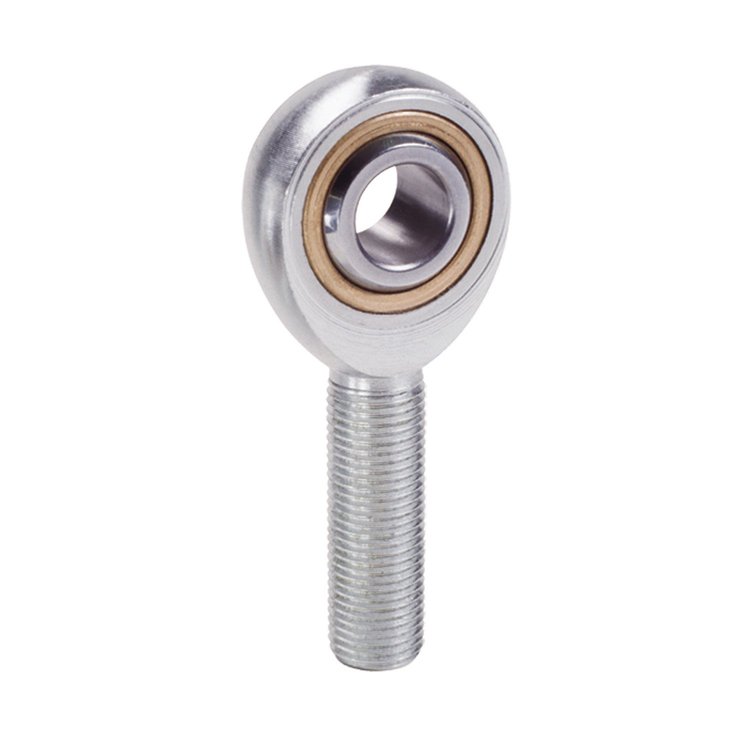

V Series Rod EndRod End (V) 4-Pc Carbon/Bronze M-L 1/4-1/4
QA1 VML4 Features:
QA1's Bronze Race Carbon Steel rod ends are generally appropriate for low load, high oscillation applications. These rod ends are protective coated for corrosion resistance and are available with left and right hand threads. The ball is made of 52100 bearing steel that has been heat treated, hard chrome plated and precision ground. The race is oil impregnated sintered bronze, and the body is carbon steel with a protective coating for corrosion resistance.
- Rod ends for every motorsport need
- Precise tolerances
- Guaranteed strength, durability and quality champions demand
Part TypeRod End
BrandQA1
Package Height0.37
Package Width0.75
Package Length1.93
Weight0.04 PG
Part CategoryPerformance Parts
Rod End AttachmentMale Threads
Rod End FinishZinc plated
Thread Length1 in (25.4 mm)
Rod End Head Bore Size0.25 in (6.4 mm)
Rod End Thread Size (In.)1/4-28 LH
QuantitySold individually
Rod End Centerline Length1.562 in (39.7 mm)
Jam Nut IncludedNo
Rod End Misalign Angle (Deg)16 degrees
Rod End Head Diameter0.75 in (19.1 mm)
Rod End Ball Width0.375 in (9.5 mm)
Grease FittingNo
Rod End Construction4-piece
Heat-TreatedYes
Rod End Head Width0.375 in (9.5 mm)
Rod End Static Load Capacity (Lbs.)2,158
Rod End MaterialCarbon steel
Rod End StyleMetal to metal
Part FitmentSemi Universal
Vendor Part NumberVML4
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
