Product Discontinued
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

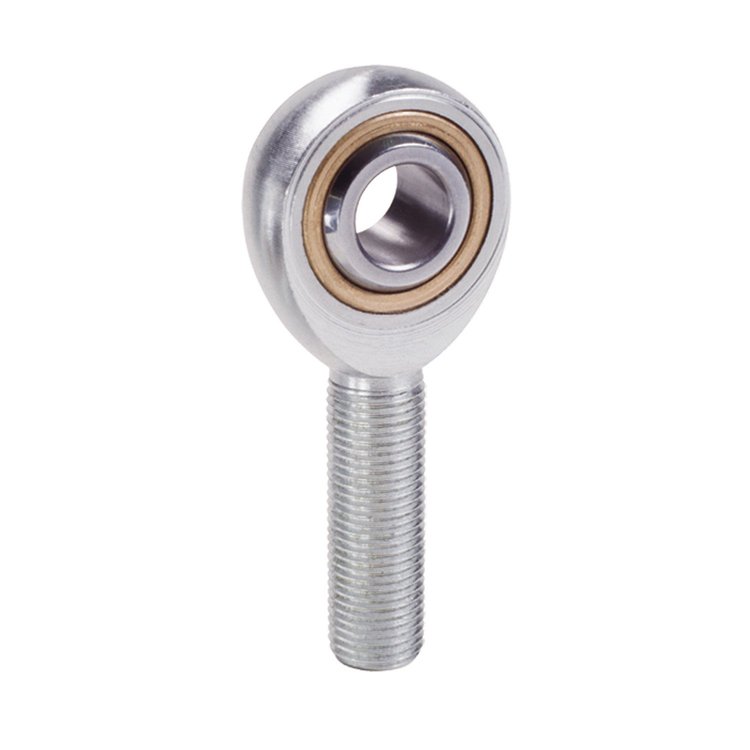

V Series Rod EndRod End (V) 4-Pc Carbon/Bronze M-R 1/2-1/2
QA1 VMR8 Features:
QA1's Bronze Race Carbon Steel rod ends are generally appropriate for low load, high oscillation applications. These rod ends are protective coated for corrosion resistance and are available with left and right hand threads. The ball is made of 52100 bearing steel that has been heat treated, hard chrome plated and precision ground. The race is oil impregnated sintered bronze, and the body is carbon steel with a protective coating for corrosion resistance.
- Rod ends for every motorsport need
- Precise tolerances
- Guaranteed strength, durability and quality champions demand
Part TypeRod End
BrandQA1
Package Height0.62
Package Width1.31
Package Length3.09
Weight0.24 PG
Part CategoryPerformance Parts
Rod End AttachmentMale Threads
Rod End FinishZinc plated
Thread Length1.5 in (38.1 mm)
Rod End Head Bore Size0.5 in (12.7 mm)
Rod End Thread Size (In.)1/2-20 RH
QuantitySold individually
Rod End Centerline Length2.438 in (61.9 mm)
Jam Nut IncludedNo
Rod End Misalign Angle (Deg)12 degrees
Rod End Head Diameter1.312 in (33.3 mm)
Rod End Ball Width0.625 in (15.9 mm)
Grease FittingNo
Rod End Construction4-piece
Heat-TreatedYes
Rod End Head Width0.625 in (15.9 mm)
Rod End Static Load Capacity (Lbs.)6,660
Rod End MaterialCarbon steel
Rod End StyleMetal to metal
Part FitmentSemi Universal
Vendor Part NumberVMR8
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
