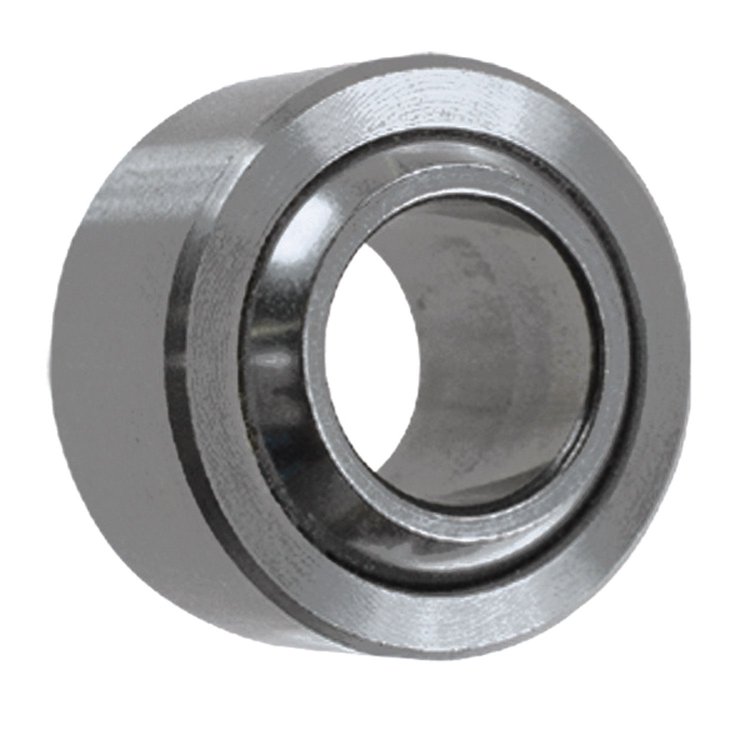

WPB Series BearingBearing (Wpb) Wide Ss Ht/ Ss Ht 5/8 PTFE
QA1 WPB10T Features:
QA1's WPB-T and WPB-TG Wide Stainless Steel Series spherical bearings are a precision grade spherical bearing. Each bearing is made from Stainless Steel with a PTFE liner and has tighter tolerances than traditional spherical bearings. Also available with this series is an optional staking groove (WPB-TG Series). The ball is made from 440C stainless steel that has been heat treated, hard chrome plated and precision ground. The PTFE liner is self-lubricating, and the race is heat treated stainless steel.
- Wide selection for a variety of uses
- Available in chromoly or stainless
- Huge selection of inch and metric sizes
Part TypeSuspension Bearing
BrandQA1
Package Height1.0
Package Width1.0
Package Length1.0
Weight0.1 PG
Part CategoryPerformance Parts
Ult. Static Radial Load (Lbs.)29,000
Race Width0.567 in (14.4 mm)
Receiver Race Diameter1.188 in (30.2 mm)
Rod End Bearing MaterialStainless steel
QuantitySold individually
Inner Ball Diameter0.625 in (15.875 mm)
Rod End Ball Diameter1.062 in (27 mm)
Chamfer Reference0.032 in (0.813 mm)
Part FitmentSemi Universal
Rod End Misalign Angle (Deg)12 degrees
Inner Ball Width0.75 in (19.05 mm)
Vendor Part NumberWPB10T
Package Qty1
Package TypeEA
