Vehicle Info NeededQA1PART NUMBER: 122-WPB12T

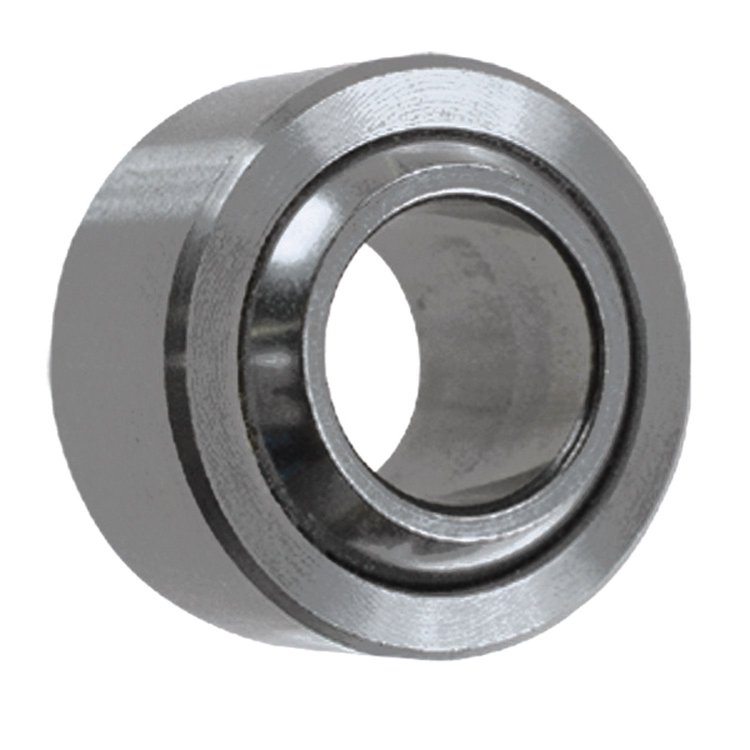

WPB12T WPB Series Bearing, Bearing (Wpb) Wide Ss Ht/ Ss Ht 3/4 PTFE
$3299
Ships on 09/09/2026
Lowest Price GuaranteeWPB Series BearingBearing (Wpb) Wide Ss Ht/ Ss Ht 3/4 PTFE
QA1 WPB12T Features:
QA1's WPB-T and WPB-TG Wide Stainless Steel Series spherical bearings are a precision grade spherical bearing. Each bearing is made from Stainless Steel with a PTFE liner and has tighter tolerances than traditional spherical bearings. Also available with this series is an optional staking groove (WPB-TG Series). The ball is made from 440C stainless steel that has been heat treated, hard chrome plated and precision ground. The PTFE liner is self-lubricating, and the race is heat treated stainless steel.
- Wide selection for a variety of uses
- Available in chromoly or stainless
- Huge selection of inch and metric sizes
Part TypeSuspension Bearing
BrandQA1
Package Height1.0
Package Width2.0
Package Length2.0
Weight0.2 PG
Part CategoryPerformance Parts
Ult. Static Radial Load (Lbs.)37,000
Race Width0.63 in (16 mm)
Receiver Race Diameter1.385 in (35.2 mm)
Rod End Bearing MaterialStainless steel
QuantitySold individually
Inner Ball Diameter0.75 in (19.05 mm)
Rod End Ball Diameter1.25 in (31.8 mm)
Chamfer Reference0.044 in (1.118 mm)
Part FitmentSemi Universal
Rod End Misalign Angle (Deg)13 degrees
Inner Ball Width0.875 in (22.225 mm)
Vendor Part NumberWPB12T
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
