Vehicle Info NeededQA1PART NUMBER: 122-WPB14T

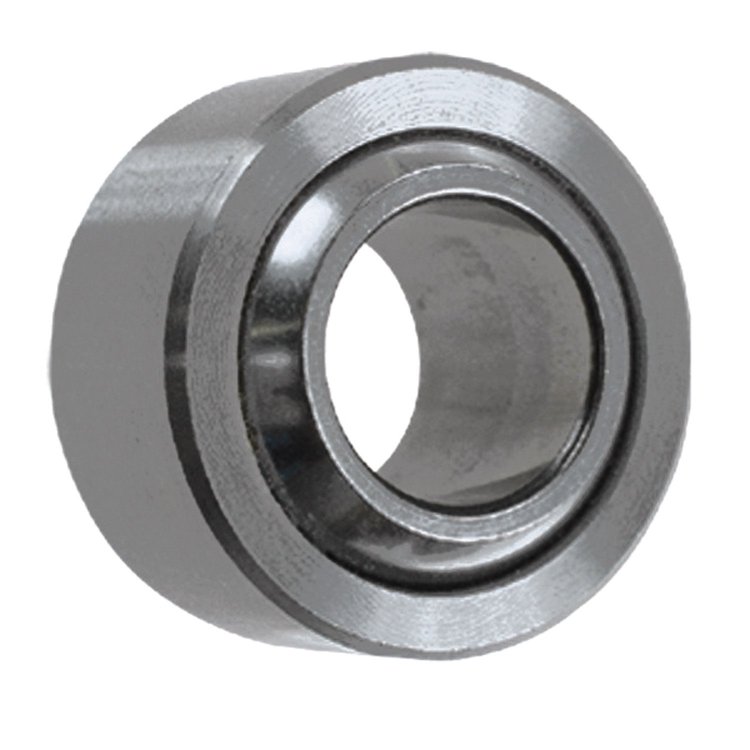

WPB14T WPB Series Bearing, Bearing (Wpb) Wide Ss Ht/ Ss Ht 7/8 PTFE
$3999
Ships on 09/17/2026
Lowest Price GuaranteeWPB Series BearingBearing (Wpb) Wide Ss Ht/ Ss Ht 7/8 PTFE
QA1 WPB14T Features:
QA1's WPB-T and WPB-TG Wide Stainless Steel Series spherical bearings are a precision grade spherical bearing. Each bearing is made from Stainless Steel with a PTFE liner and has tighter tolerances than traditional spherical bearings. Also available with this series is an optional staking groove (WPB-TG Series). The ball is made from 440C stainless steel that has been heat treated, hard chrome plated and precision ground. The PTFE liner is self-lubricating, and the race is heat treated stainless steel.
- Wide selection for a variety of uses
- Available in chromoly or stainless
- Huge selection of inch and metric sizes
Part TypeSuspension Bearing
BrandQA1
Package Height0.87
Package Width1.62
Package Length1.62
Weight0.35 PG
Part CategoryPerformance Parts
Ult. Static Radial Load (Lbs.)65,200
Race Width0.755 in (19.2 mm)
Receiver Race Diameter1.625 in (41.3 mm)
Rod End Bearing MaterialStainless steel
QuantitySold individually
Inner Ball Diameter0.875 in (22.225 mm)
Rod End Ball Diameter1.375 in (34.9 mm)
Chamfer Reference0.044 in (1.118 mm)
Part FitmentSemi Universal
Rod End Misalign Angle (Deg)6 degrees
Inner Ball Width0.875 in (22.225 mm)
Vendor Part NumberWPB14T
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
