Product Discontinued
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

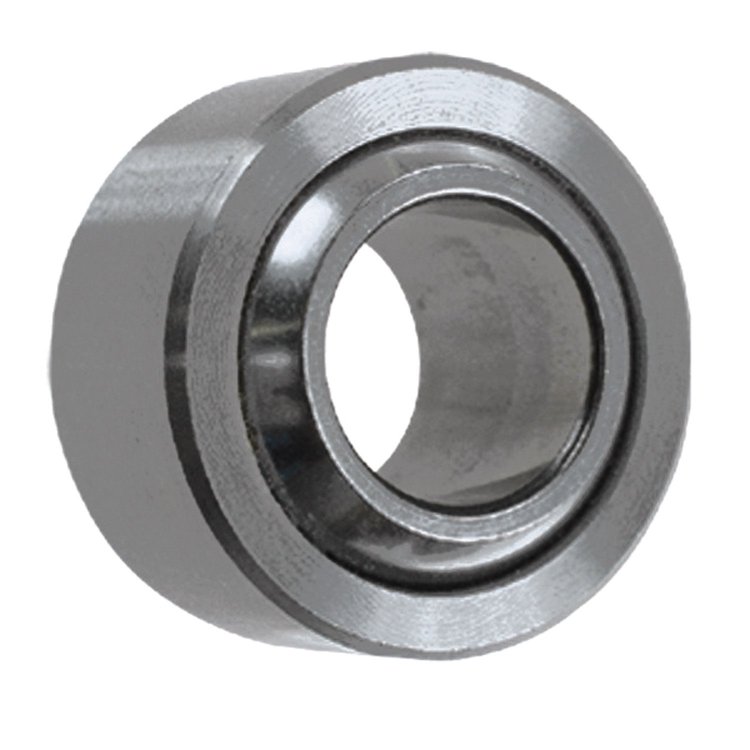

WPB Series BearingBearing (Wpb) Wide Ss Ht/ Ss Ht 1/4 PTFE
QA1 WPB4T Features:
QA1's WPB-T and WPB-TG Wide Stainless Steel Series spherical bearings are a precision grade spherical bearing. Each bearing is made from Stainless Steel with a PTFE liner and has tighter tolerances than traditional spherical bearings. Also available with this series is an optional staking groove (WPB-TG Series). The ball is made from 440C stainless steel that has been heat treated, hard chrome plated and precision ground. The PTFE liner is self-lubricating, and the race is heat treated stainless steel.
- Wide selection for a variety of uses
- Available in chromoly or stainless
- Huge selection of inch and metric sizes
Part TypeSuspension Bearing
BrandQA1
Package Height0.43
Package Width0.62
Package Length0.62
Weight0.02 PG
Part CategoryPerformance Parts
Ult. Static Radial Load (Lbs.)5,500
Race Width0.327 in (8.3 mm)
Receiver Race Diameter0.625 in (15.9 mm)
Rod End Bearing MaterialStainless steel
QuantitySold individually
Inner Ball Diameter0.25 in (6.35 mm)
Rod End Ball Diameter0.531 in (13.5 mm)
Chamfer Reference0.022 in (0.559 mm)
Part FitmentSemi Universal
Rod End Misalign Angle (Deg)15 degrees
Inner Ball Width0.437 in (11.1 mm)
Vendor Part NumberWPB4T
Package Qty1
Package TypeEA
