Vehicle Info NeededQA1PART NUMBER: 122-WPB5TG

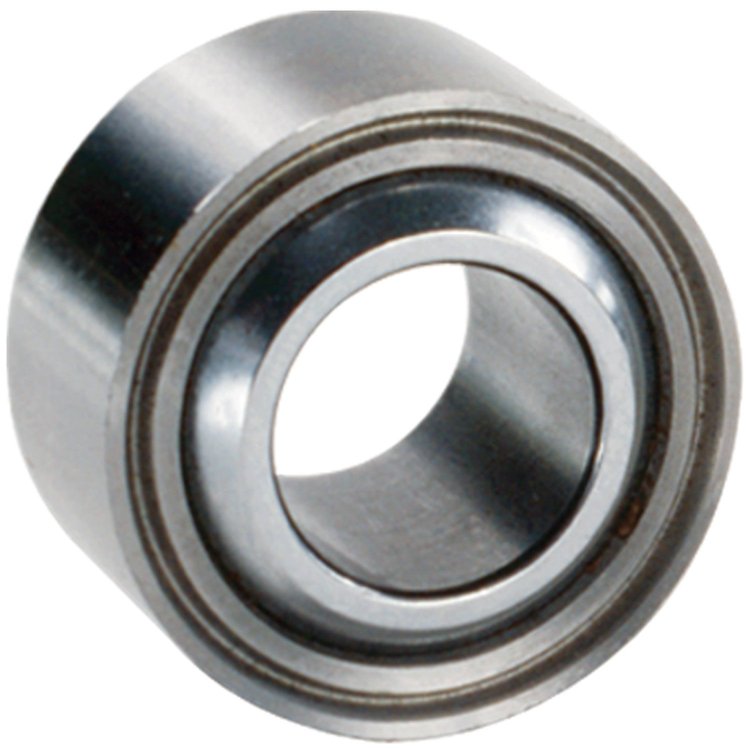

WPB5TG WPB Series Bearing, Bearing (Wpb) Wide Ss Ht/ Ss Ht 5/16 V-Grv PTFE
$2599
Ships on 09/18/2026
Lowest Price GuaranteeWPB Series BearingBearing (Wpb) Wide Ss Ht/ Ss Ht 5/16 V-Grv PTFE
QA1 WPB5TG Features:
QA1's WPB-T and WPB-TG Wide Stainless Steel Series spherical bearings are a precision grade spherical bearing. Each bearing is made from Stainless Steel with a PTFE liner and has tighter tolerances than traditional spherical bearings. Also available with this series is an optional staking groove (WPB-TG Series). The ball is made from 440C stainless steel that has been heat treated, hard chrome plated and precision ground. The PTFE liner is self-lubricating, and the race is heat treated stainless steel with a staking groove.
- Wide selection for a variety of uses
- Available in chromoly or stainless
- Huge selection of inch and metric sizes
Part TypeSuspension Bearing
BrandQA1
Package Height0.43
Package Width0.68
Package Length0.68
Weight0.03 PG
Part CategoryPerformance Parts
Ult. Static Radial Load (Lbs.)9,400
Race Width0.317 in (8.1 mm)
Receiver Race Diameter0.688 in (17.5 mm)
Rod End Bearing MaterialStainless steel
QuantitySold individually
Inner Ball Diameter0.313 in (7.95 mm)
Rod End Ball Diameter0.593 in (15.1 mm)
Part FitmentSemi Universal
Rod End Misalign Angle (Deg)14 degrees
Inner Ball Width0.437 in (11.1 mm)
Vendor Part NumberWPB5TG
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
