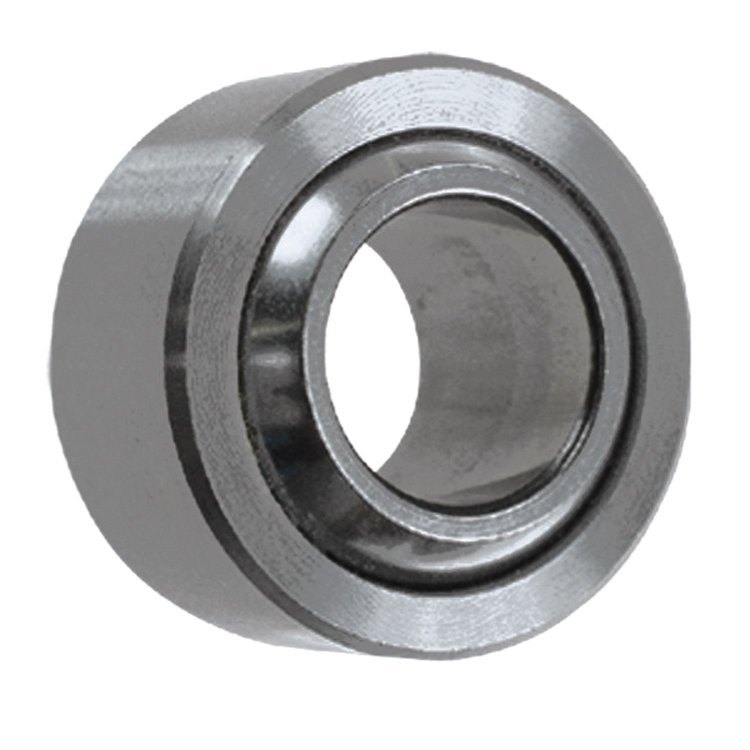

BEARING (WPB) WIDE SS HT/ SS HT 7/16 TEF

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

QA1?s WPB-T and WPB-TG Wide Stainless Steel Series spherical bearings are a precision grade spherical bearing. Each bearing is made from Stainless Steel with a PTFE liner and has tighter tolerances than traditional spherical bearings. Also available with this series is an optional staking groove (WPB-TG Series).` QA1?s WPB-T and WPB-TG Wide Stainless Steel Series spherical bearings are a precision

Part TypeSuspension Bearing

BrandQA1

Package Height0.56

Package Width0.93

Package Length0.93

Weight0.07 PG

Part CategoryPerformance Parts

Ult. Static Radial Load (Lbs.)20,700

Race Width0.442 in (11.2 mm)

Receiver Race Diameter0.938 in (23.8 mm)

Rod End Bearing MaterialStainless steel

QuantitySold individually

Inner Ball Diameter0.438 in (11.125 mm)

Rod End Ball Diameter0.781 in (19.8 mm)

Chamfer Reference0.032 in (0.813 mm)

Rod End Misalign Angle (Deg)10 degrees

Inner Ball Width0.562 in (14.275 mm)

Vendor Part NumberWPB7T

Package Qty1

Package TypeEA
