QA1PART NUMBER: 122-XFL12

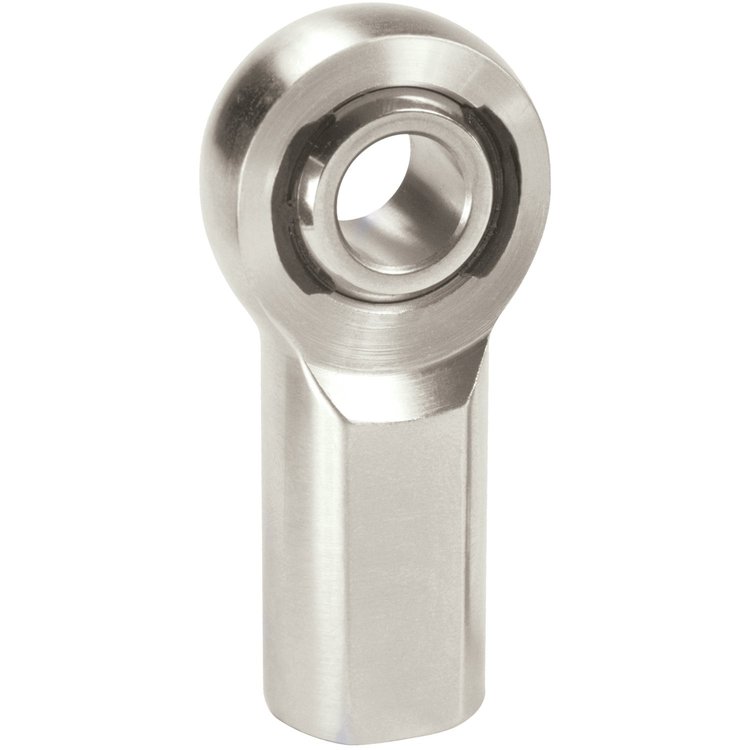

XF Chromoly Steel Series Rod End Hole I.D.: .7500"

Name: XF Chromoly Steel Series Rod End Hole I.D.: .7500"
Brand: QA1
SKU: 122-XFL12
Price: 36.99 USD
Availability: InStock

^$36⁹⁹

More than 10 available

Ships Today

Lowest Price Guarantee

XF Chromoly Steel Series Rod End

Left Hand Thread

Part TypeRod End

BrandQA1

Package Height1.0

Package Width2.5

Package Length4.5

Weight0.7 PG

Part CategoryPerformance Parts

Rod End AttachmentFemale Threads

Rod End FinishZinc plated

Thread Length1.75 in (44.5 mm)

Rod End Head Bore Size0.75 in (19.1 mm)

Rod End Thread Size (In.)3/4-16 LH

QuantitySold individually

Rod End Centerline Length2.875 in (73 mm)

Jam Nut IncludedNo

Rod End Misalign Angle (Deg)14 degrees

Rod End Head Diameter1.75 in (44.5 mm)

Rod End Ball Width0.875 in (22.2 mm)

Grease FittingNo

Rod End Construction2-piece

Heat-TreatedYes

Rod End Head Width0.875 in (22.2 mm)

Rod End Static Load Capacity (Lbs.)28,081

Rod End MaterialChromoly

Rod End StylePTFE/KEVLAR« lined

Part FitmentUniversal

Vendor Part NumberXFL12

Package Qty1

Package TypeEA
