Product Discontinued
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

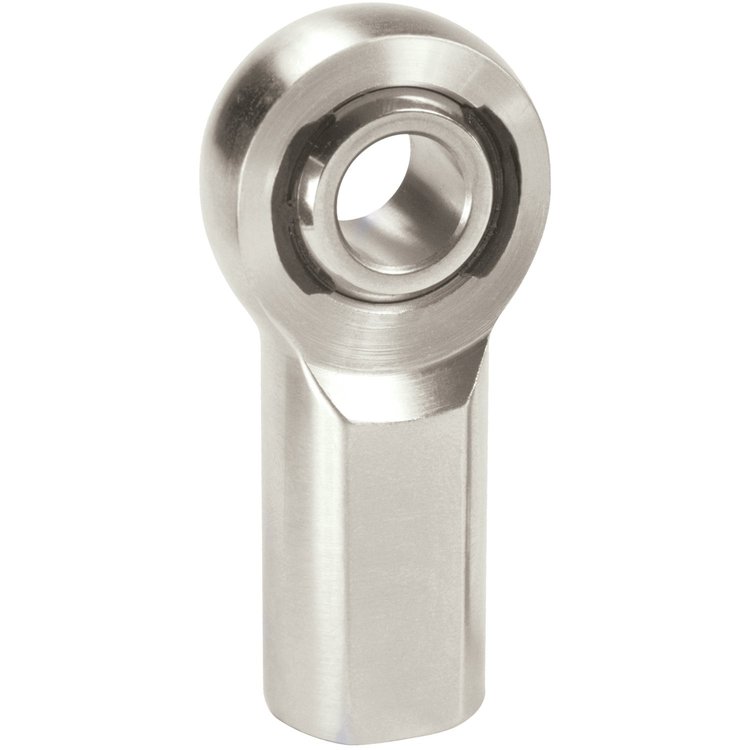

XF Chromoly Steel Series Rod End
- XF Chromoly Steel Series Rod End
- Hole I.D.: 1.0000"
- RH Thread: 1-1/4"-12
ROD END (X) ENDURA ALLOY HT , F-R 1-1 1/4
Part TypeRod End
BrandQA1
Package Height1.37
Package Width2.75
Package Length5.5
Weight2.13 PG
Part CategoryPerformance Parts
Rod End AttachmentFemale Threads
Rod End FinishZinc plated
Thread Length2.125 in (54 mm)
Rod End Head Bore Size1 in (25.4 mm)
Rod End Thread Size (In.)1 1/4-12 RH
QuantitySold individually
Rod End Centerline Length4.125 in (104.8 mm)
Jam Nut IncludedNo
Rod End Misalign Angle (Deg)17 degrees
Rod End Head Diameter2.75 in (69.9 mm)
Rod End Ball Width1.375 in (34.9 mm)
Grease FittingNo
Rod End Construction2-piece
Heat-TreatedYes
Rod End Head Width1.375 in (34.9 mm)
Rod End Static Load Capacity (Lbs.)76,200
Rod End MaterialChromoly
Rod End StylePTFE/KEVLAR« lined
Part FitmentUniversal
Vendor Part NumberXFR16
Package Qty1
Package TypeEA
