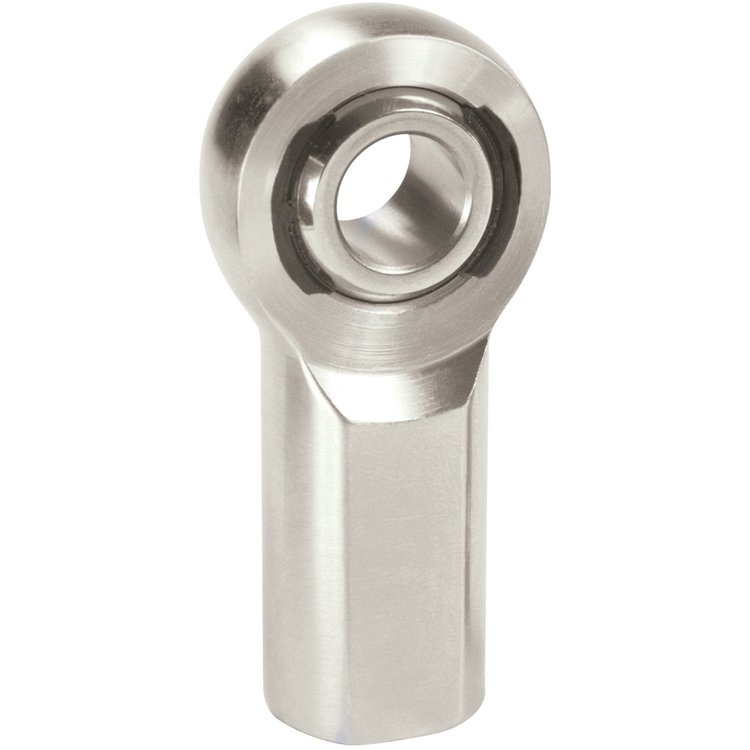

XF Chromoly Steel Series Rod End Hole I.D.: .1900"
Product Discontinued
QA1PART NUMBER: 122-XFR3

XF Chromoly Steel Series Rod End Hole I.D.: .1900"

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

XF Chromoly Steel Series Rod End
  • Right Hand Thread
    • XF Chromoly Steel Series Rod End
    • Hole I.D.: .1900"
    • RH Thread: 10-32

      ROD END (X) ENDURA ALLOY HT , F-R 3/16-3/16

    XF Female Chromoly Steel Series Rod Ends: For the ultimate in performance rod ends, look no further than QA1's XF Chromoly Steel Series Female rod ends. These heavy duty rod ends are commonly used on 4-link and ladder bars for their strength and durability. XF Series rod ends are completely self-sealing and self-lubricating because of their PTFE®/Kevlar® injection molded race that keeps dirt and debris out.

    • Ball: 52100 Bearing Steel, Heat Treated, Hard Chrome Plated, Precision Ground
    • Race: PTFE®/Kevlar®, Self-Lubricating, Self-Sealing
    • Body: Chromoly Steel, Heat Treated, Protective Coated for Corrosion Resistance
    • Exclusive Features: Metal to Metal Support for Heavy Shock Loads and Increased Cross-Sectional Thickness for Greater Tensile Strength.
    Show More




    QA1 Endura X-Series Chromoly Steel Rod Ends are also available with Male threads


    Part TypeRod End
    Product LineQA1 Endura XF Series Female Rod Ends
    BrandQA1
    Package Height0.31
    Package Width0.62
    Package Length1.37
    Weight0.4 PG
    Part CategoryPerformance Parts
    Rod End AttachmentFemale Threads
    Rod End FinishZinc plated
    Rod End Thread Size10-32 RH NF
    Thread Length0.562 in (14.3 mm)
    Rod End Head Bore Size0.19 in (4.8 mm)
    QuantitySold individually
    Rod End Centerline Length1.062 in (27 mm)
    Jam Nut IncludedNo
    Rod End Misalign Angle (Deg)13 degrees
    Rod End Head Diameter0.625 in (15.9 mm)
    Rod End Ball Width0.312 in (7.9 mm)
    Grease FittingNo
    Rod End Construction2-piece
    Heat-TreatedYes
    Rod End Head Width0.312 in (7.9 mm)
    Rod End Static Load Capacity (Lbs.)3,733
    Rod End MaterialChromoly
    Rod End StylePTFE/KEVLAR« lined
    Part FitmentUniversal
    Vendor Part NumberXFR3
    Package Qty1
    Package TypeEA
