QA1PART NUMBER: 122-XFR7

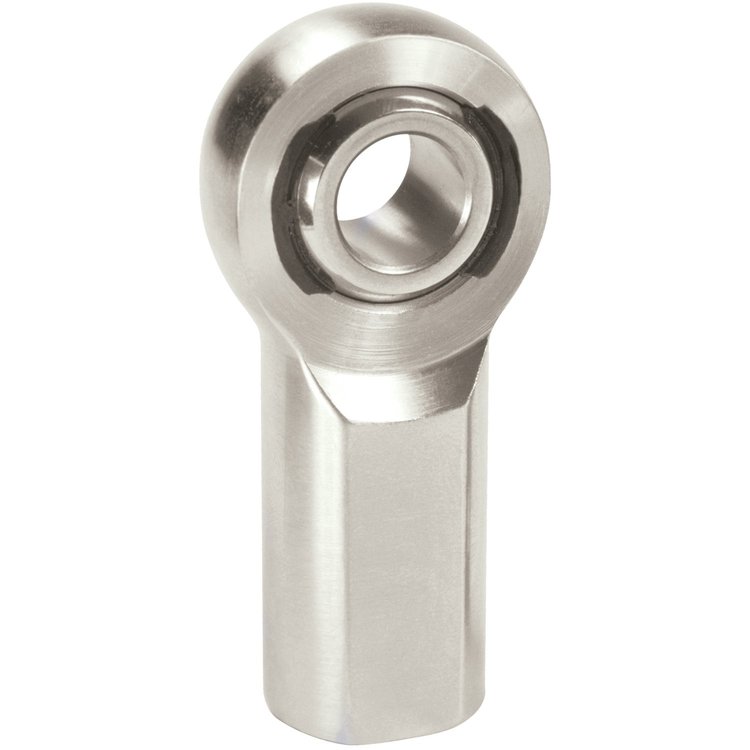

XF Chromoly Steel Series Rod End Hole I.D.: .4375"

Name: XF Chromoly Steel Series Rod End Hole I.D.: .4375"
Brand: QA1
SKU: 122-XFR7
Price: 13.99 USD
Availability: InStock

^$13⁹⁹

Ships on 09/10/2026

Lowest Price Guarantee

XF Chromoly Steel Series Rod End

Right Hand Thread

Part TypeRod End

BrandQA1

Package Height0.3

Package Width3.0

Package Length5.2

Weight0.25 PG

Part CategoryPerformance Parts

Rod End AttachmentFemale Threads

Rod End FinishZinc plated

Thread Length1.062 in (27 mm)

Rod End Head Bore Size0.438 in (11.1 mm)

Rod End Thread Size (In.)7/16-20 RH

QuantitySold individually

Rod End Centerline Length1.812 in (46 mm)

Jam Nut IncludedNo

Rod End Misalign Angle (Deg)14 degrees

Rod End Head Diameter1.125 in (28.6 mm)

Rod End Ball Width0.562 in (14.3 mm)

Grease FittingNo

Rod End Construction2-piece

Heat-TreatedYes

Rod End Head Width0.562 in (14.3 mm)

Rod End Static Load Capacity (Lbs.)10,285

Rod End MaterialChromoly

Rod End StylePTFE/KEVLAR« lined

Part FitmentUniversal

Vendor Part NumberXFR7

Package Qty1

Package TypeEA
