Vehicle Info NeededQA1PART NUMBER: 122-XFR8

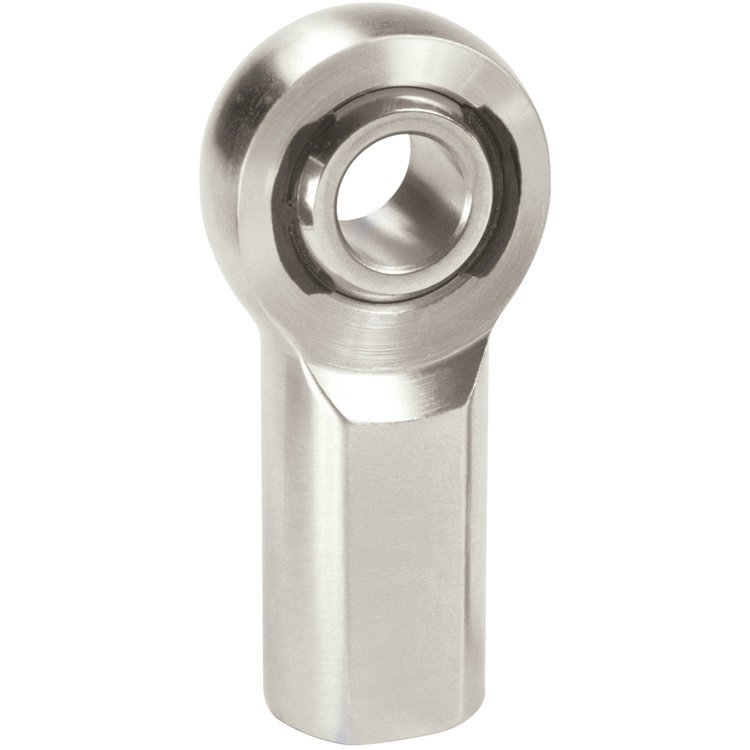

XF Chromoly Steel Series Rod End Hole I.D.: .5000"
$1899
More than 10 available
Ships Today
Lowest Price GuaranteeXF Chromoly Steel Series Rod EndRight Hand Thread
- XF Chromoly Steel Series Rod End
- Hole I.D.: .5000"
- RH Thread: 1/2"-20
ROD END (X) ENDURA ALLOY HT , F-R 1/2-1/2
XF Female Chromoly Steel Series Rod Ends: For the ultimate in performance rod ends, look no further than QA1's XF Chromoly Steel Series Female rod ends. These heavy duty rod ends are commonly used on 4-link and ladder bars for their strength and durability. XF Series rod ends are completely self-sealing and self-lubricating because of their PTFE®/Kevlar® injection molded race that keeps dirt and debris out.
- Ball: 52100 Bearing Steel, Heat Treated, Hard Chrome Plated, Precision Ground
- Race: PTFE®/Kevlar®, Self-Lubricating, Self-Sealing
- Body: Chromoly Steel, Heat Treated, Protective Coated for Corrosion Resistance
- Exclusive Features: Metal to Metal Support for Heavy Shock Loads and Increased Cross-Sectional Thickness for Greater Tensile Strength.
Show More
QA1 Endura X-Series Chromoly Steel Rod Ends are also available with Male threads
Part TypeRod End
Product LineQA1 Endura XF Series Female Rod Ends
BrandQA1
Package Height1.0
Package Width2.0
Package Length2.0
Weight0.3 PG
Part CategoryPerformance Parts
Rod End AttachmentFemale Threads
Rod End FinishZinc plated
Thread Length1.187 in (30.1 mm)
Rod End Head Bore Size0.5 in (12.7 mm)
Rod End Thread Size (In.)1/2-20 RH
QuantitySold individually
Rod End Centerline Length2.125 in (54 mm)
Jam Nut IncludedNo
Rod End Misalign Angle (Deg)12 degrees
Rod End Head Diameter1.312 in (33.3 mm)
Rod End Ball Width0.625 in (15.9 mm)
Grease FittingNo
Rod End Construction2-piece
Heat-TreatedYes
Rod End Head Width0.625 in (15.9 mm)
Rod End Static Load Capacity (Lbs.)15,336
Rod End MaterialChromoly
Rod End StylePTFE/KEVLAR« lined
Part FitmentUniversal
Vendor Part NumberXFR8
Package Qty1
Package TypeEA
