Vehicle Info NeededQA1PART NUMBER: 122-XML14

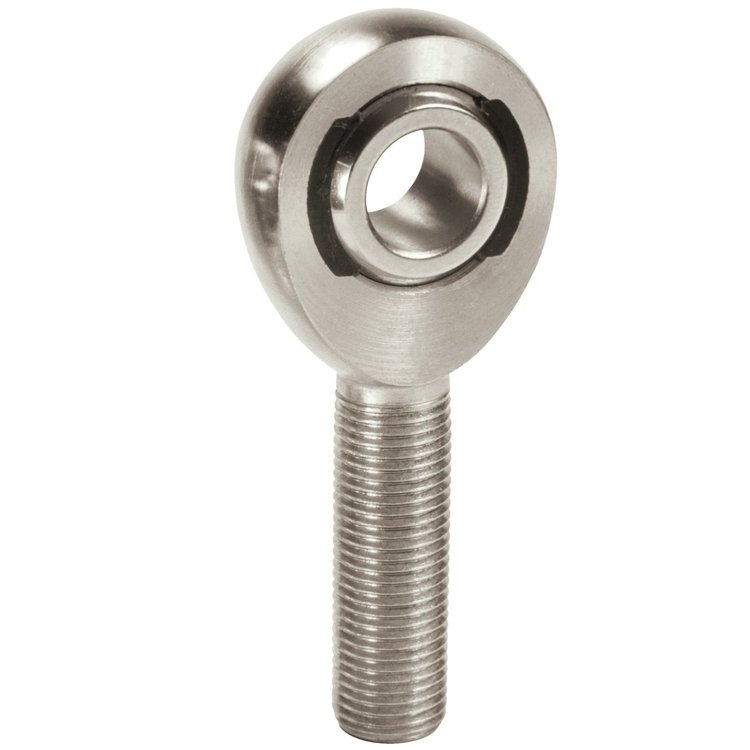

XM Chromoly Steel Series Rod End Hole I.D.: .8750"
$5608
Ships on 09/08/2026
Lowest Price GuaranteeXM Chromoly Steel Series Rod EndLeft Hand Thread
- XM Chromoly Steel Series Rod End
- Hole I.D.: .8750"
- LH Thread: 7/8"-14
ROD END (X) ENDURA ALLOY HT , M-L 7/8-7/8
Part TypeRod End
BrandQA1
Package Height1.0
Package Width2.0
Package Length5.0
Weight0.4 PG
Part CategoryPerformance Parts
Rod End AttachmentMale Threads
Rod End FinishZinc plated
Thread Length2 in (50.8 mm)
Rod End Head Bore Size0.875 in (22.2 mm)
Rod End Thread Size (In.)7/8-14 LH
QuantitySold individually
Rod End Centerline Length3.375 in (85.7 mm)
Jam Nut IncludedNo
Rod End Misalign Angle (Deg)7 degrees
Rod End Head Diameter2 in (50.8 mm)
Rod End Ball Width0.875 in (22.2 mm)
Grease FittingNo
Rod End Construction2-piece
Heat-TreatedYes
Rod End Head Width0.875 in (22.2 mm)
Rod End Static Load Capacity (Lbs.)45,051
Rod End MaterialChromoly
Rod End StylePTFE/KEVLAR« lined
Part FitmentUniversal
Vendor Part NumberXML14
Package Qty1
Package TypeEA
