Vehicle Info NeededQA1PART NUMBER: 122-XML16

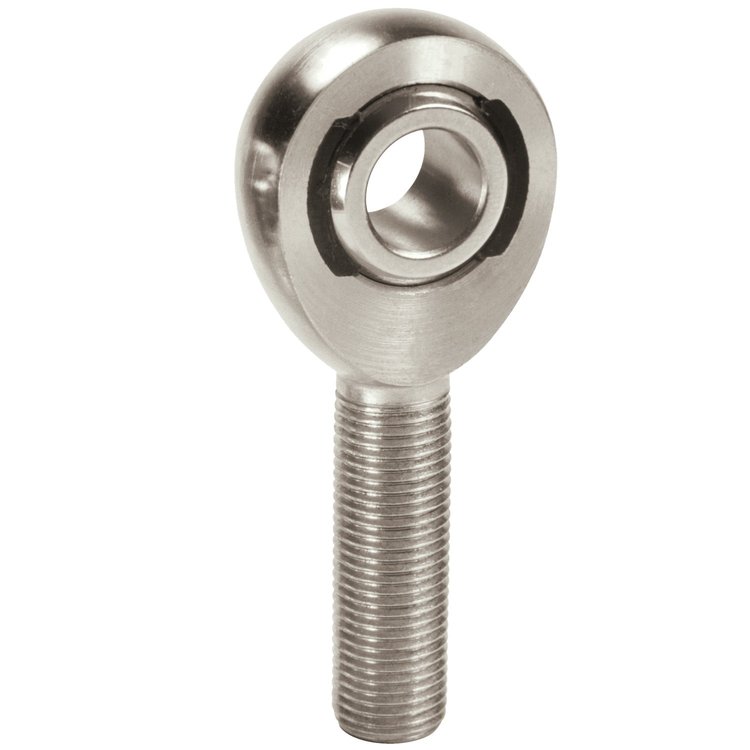

XM Chromoly Steel Series Rod End Hole I.D.: 1.000"
$8999
Ships on 09/09/2026
Lowest Price GuaranteeXM Chromoly Steel Series Rod EndLeft Hand Thread
- XM Chromoly Steel Series Rod End
- Hole I.D.: .3125"
- LH Thread: 3/8-24
ROD END (X) ENDURA ALLOY HT , M-L 1-1 1/4
Part TypeRod End
BrandQA1
Package Height1.2
Package Width1.7
Package Length5.7
Weight2.3 PG
Part CategoryPerformance Parts
Rod End AttachmentMale Threads
Rod End FinishZinc plated
Thread Length2.125 in (54 mm)
Rod End Head Bore Size1 in (25.4 mm)
Rod End Thread Size (In.)1 1/4-12 LH
QuantitySold individually
Rod End Centerline Length4.125 in (104.8 mm)
Jam Nut IncludedNo
Rod End Misalign Angle (Deg)17 degrees
Rod End Head Diameter2.75 in (69.9 mm)
Rod End Ball Width1.375 in (34.9 mm)
Grease FittingNo
Rod End Construction2-piece
Heat-TreatedYes
Rod End Head Width1.375 in (34.9 mm)
Rod End Static Load Capacity (Lbs.)76,200
Rod End MaterialChromoly
Rod End StylePTFE/KEVLAR« lined
Part FitmentUniversal
Vendor Part NumberXML16
Package Qty1
Package TypeEA
No Questions
No Reviews
