Vehicle Info Needed

QA1PART NUMBER: 122-XML4

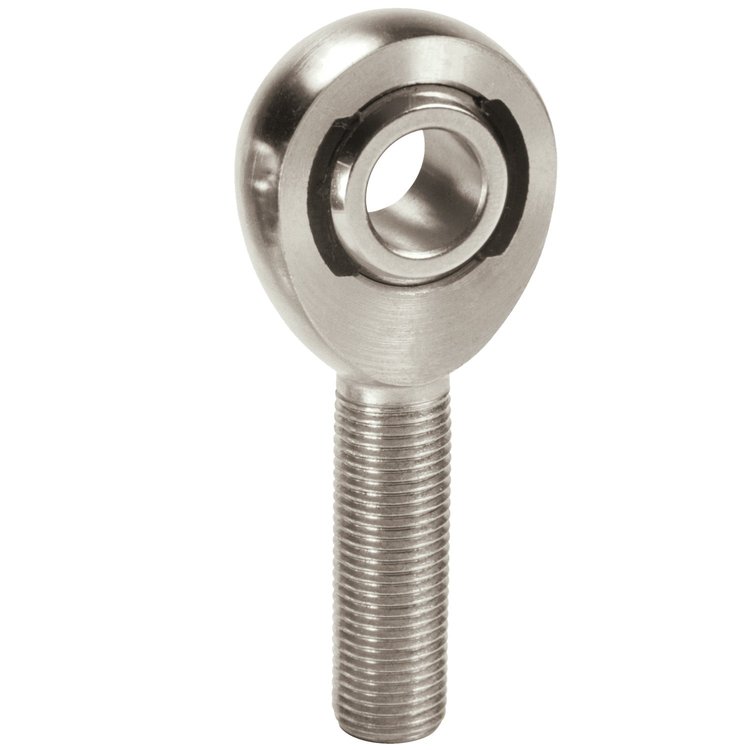

XM Chromoly Steel Series Rod End Hole I.D.: .2500"

Name: XM Chromoly Steel Series Rod End Hole I.D.: .2500"
Brand: QA1
SKU: 122-XML4
Price: 10.99 USD
Availability: InStock

^$10⁹⁹

Ships on 09/09/2026

Lowest Price Guarantee

XM Chromoly Steel Series Rod End

Left Hand Thread

Part TypeRod End

BrandQA1

Package Height2.7

Package Width3.5

Package Length4.3

Weight0.15 PG

Part CategoryPerformance Parts

Rod End AttachmentMale Threads

Rod End FinishZinc plated

Thread Length1 in (25.4 mm)

Rod End Head Bore Size0.25 in (6.4 mm)

Rod End Thread Size (In.)1/4-28 LH

QuantitySold individually

Rod End Centerline Length1.562 in (39.7 mm)

Jam Nut IncludedNo

Rod End Misalign Angle (Deg)16 degrees

Rod End Head Diameter0.75 in (19.1 mm)

Rod End Ball Width0.375 in (9.5 mm)

Grease FittingNo

Rod End Construction2-piece

Heat-TreatedYes

Rod End Head Width0.375 in (9.5 mm)

Rod End Static Load Capacity (Lbs.)5,260

Rod End MaterialChromoly

Rod End StylePTFE/KEVLAR« lined

Part FitmentUniversal

Vendor Part NumberXML4

Package Qty1

Package TypeEA
