QA1PART NUMBER: 122-XML5

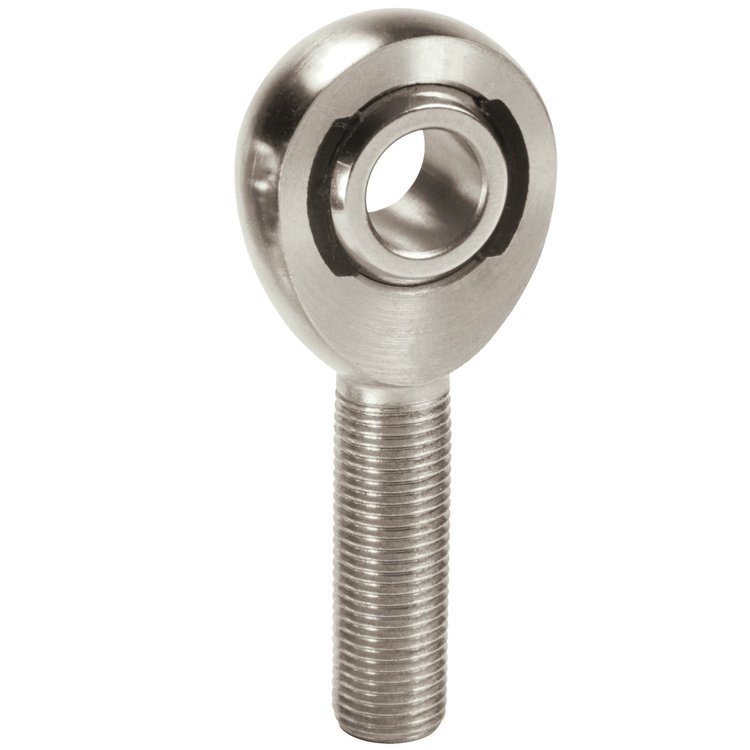

XM Chromoly Steel Series Rod End Hole I.D.: .3125"

Name: XM Chromoly Steel Series Rod End Hole I.D.: .3125"
Brand: QA1
SKU: 122-XML5
Price: 10.99 USD
Availability: InStock

^$10⁹⁹

Ships on 09/09/2026

Lowest Price Guarantee

XM Chromoly Steel Series Rod End

Left Hand Thread

Part TypeRod End

BrandQA1

Package Height0.43

Package Width0.87

Package Length2.31

Weight0.07 PG

Part CategoryPerformance Parts

Rod End AttachmentMale Threads

Rod End FinishZinc plated

Thread Length1.25 in (31.8 mm)

Rod End Head Bore Size0.313 in (8 mm)

Rod End Thread Size (In.)5/16-24 LH

QuantitySold individually

Rod End Centerline Length1.875 in (47.6 mm)

Jam Nut IncludedNo

Rod End Misalign Angle (Deg)14 degrees

Rod End Head Diameter0.875 in (22.2 mm)

Rod End Ball Width0.437 in (11.1 mm)

Grease FittingNo

Rod End Construction2-piece

Heat-TreatedYes

Rod End Head Width0.437 in (11.1 mm)

Rod End Static Load Capacity (Lbs.)7,639

Rod End MaterialChromoly

Rod End StylePTFE/KEVLAR« lined

Part FitmentUniversal

Vendor Part NumberXML5

Package Qty1

Package TypeEA

No Questions

No Reviews

Some parts are not legal for use in California or other states with similar laws / regulations
