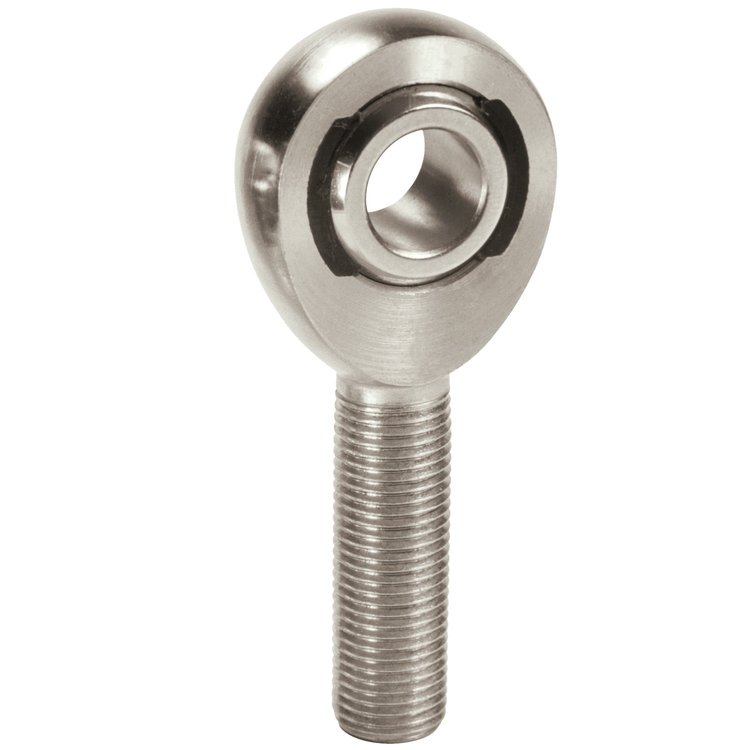

XML7-8 X Series Rod End, Rod End (X) Endura Alloy Ht M-L 7/16-1/2
InfoVehicle Info Needed
QA1PART NUMBER: 122-XML7-8

XML7-8 X Series Rod End, Rod End (X) Endura Alloy Ht M-L 7/16-1/2

$1899
ShippingShips Tomorrow
Lowest PriceLowest Price Guarantee

X Series Rod End
  • Rod End (X) Endura Alloy Ht M-L 7/16-1/2

    QA1 XML7-8 Features:

    For the ultimate in performance rod ends, look no further than QA1's XM Chromoly Steel Series male rod ends. These heavy duty rod ends are commonly used on 4-link and ladder bars for their strength and durability. XM Series rod ends are completely self-sealing and self-lubricating because of their Nylon/PTFE injection molded race that keeps dirt and debris out. The ball is made of 52100 bearing steel that has been heat treated, hard chrome plated and precision ground. The PTFE race is self-lubricating and self-sealing, and the body is made from heat treated chromoly steel that has a protective coating for corrosion resistance. EXCLUSIVE FEATURES: Metal to metal support for heavy shock loads and increased cross-sectional thickness for greater tensile strength.

    • Rod ends for every motorsport need
    • Precise tolerances
    • Guaranteed strength, durability and quality champions demand
  • Part TypeRod End
    BrandQA1
    Package Height2.7
    Package Width3.1
    Package Length4.6
    Weight0.35 PG
    Part CategoryPerformance Parts
    Rod End AttachmentMale Threads
    Rod End FinishZinc plated
    Thread Length1.5 in (38.1 mm)
    Rod End Head Bore Size0.438 in (11.1 mm)
    Rod End Thread Size (In.)1/2-20 LH
    QuantitySold individually
    Rod End Centerline Length2.438 in (61.9 mm)
    Jam Nut IncludedNo
    Rod End Misalign Angle (Deg)12 degrees
    Rod End Head Diameter1.312 in (33.3 mm)
    Rod End Ball Width0.562 in (14.3 mm)
    Grease FittingNo
    Rod End Construction2-piece
    Heat-TreatedYes
    Rod End Head Width0.562 in (14.3 mm)
    Rod End Static Load Capacity (Lbs.)18,761
    Rod End MaterialChromoly
    Rod End StylePTFE/KEVLAR« lined
    Part FitmentSemi Universal
    Vendor Part NumberXML7-8
    Package Qty1
    Package TypeEA
