Vehicle Info Needed

QA1PART NUMBER: 122-XML8-10

XM Chromoly Steel Series Rod End Hole I.D.: .5000"

Name: XM Chromoly Steel Series Rod End Hole I.D.: .5000"
Brand: QA1
SKU: 122-XML8-10
Price: 24.99 USD
Availability: InStock

^$24⁹⁹

1 left in stock

Ships Today

Lowest Price Guarantee

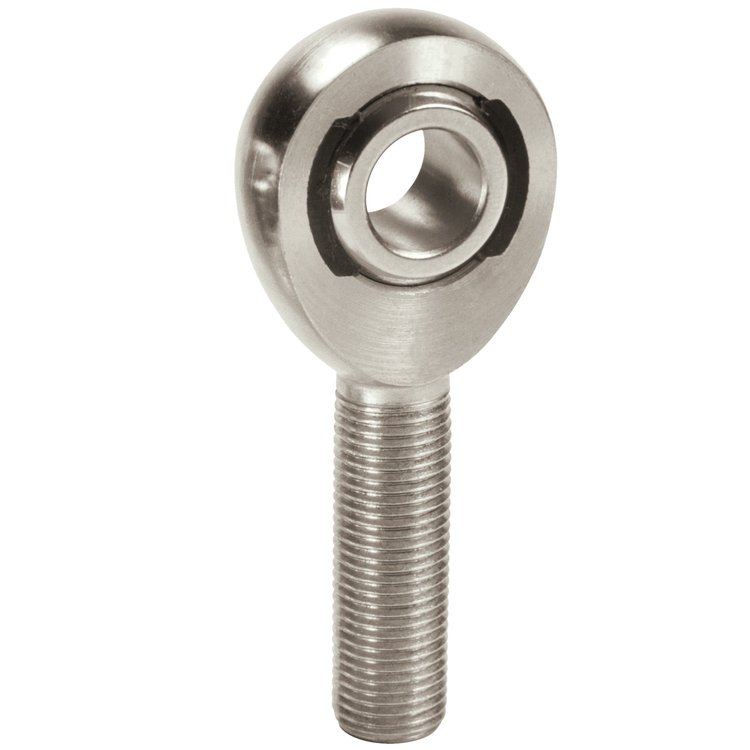

XM Chromoly Steel Series Rod End

Left Hand Thread

Part TypeRod End

BrandQA1

Package Height2.7

Package Width3.1

Package Length3.8

Weight0.4 PG

Part CategoryPerformance Parts

Rod End AttachmentMale Threads

Rod End FinishZinc plated

Thread Length1.625 in (41.3 mm)

Rod End Head Bore Size0.5 in (12.7 mm)

Rod End Thread Size (In.)5/8-18 LH

QuantitySold individually

Rod End Centerline Length2.625 in (66.7 mm)

Jam Nut IncludedNo

Rod End Misalign Angle (Deg)10 degrees

Rod End Head Diameter1.5 in (38.1 mm)

Rod End Ball Width0.625 in (15.9 mm)

Grease FittingNo

Rod End Construction2-piece

Heat-TreatedYes

Rod End Head Width0.625 in (15.9 mm)

Rod End Static Load Capacity (Lbs.)23,542

Rod End MaterialChromoly

Rod End StylePTFE/KEVLAR« lined

Part FitmentUniversal

Vendor Part NumberXML8-10

Package Qty1

Package TypeEA

No Questions

No Reviews

Some parts are not legal for use in California or other states with similar laws / regulations
