Vehicle Info NeededQA1PART NUMBER: 122-XML8
XM Chromoly Steel Series Rod End Hole I.D.: .5000"
$1599
6 left in stock
Ships Tomorrow
Lowest Price GuaranteeXM Chromoly Steel Series Rod EndLeft Hand Thread

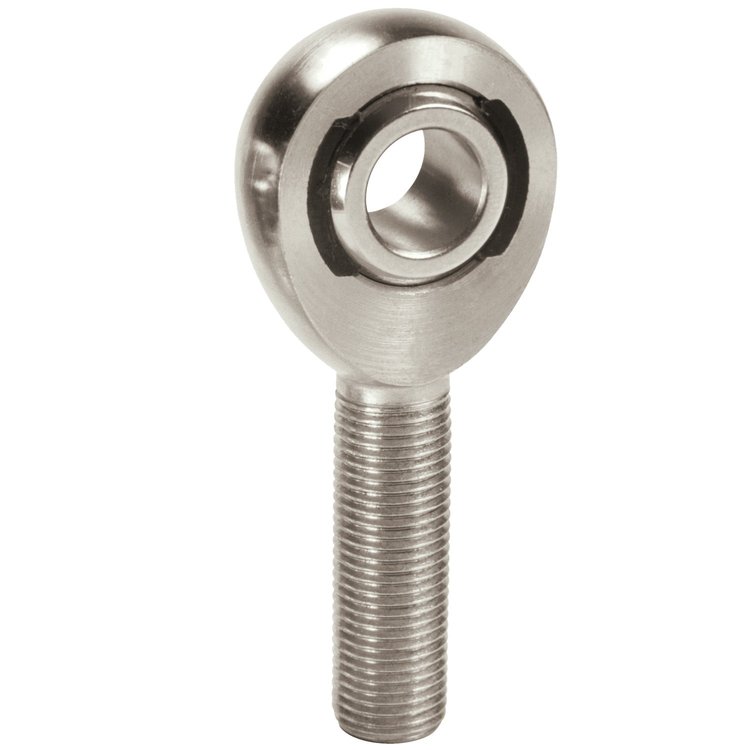

- XM Chromoly Steel Series Rod End
- Hole I.D.: .5000"
- LH Thread: 1/2"-20
ROD END (X) ENDURA ALLOY HT , M-L 1/2-1/2
Part TypeRod End
BrandQA1
Package Height1.9
Package Width2.4
Package Length4.8
Weight0.3 PG
Part CategoryPerformance Parts
Rod End AttachmentMale Threads
Rod End FinishZinc plated
Thread Length1.5 in (38.1 mm)
Rod End Head Bore Size0.5 in (12.7 mm)
Rod End Thread Size (In.)1/2-20 LH
QuantitySold individually
Rod End Centerline Length2.438 in (61.9 mm)
Jam Nut IncludedNo
Rod End Misalign Angle (Deg)12 degrees
Rod End Head Diameter1.312 in (33.3 mm)
Rod End Ball Width0.625 in (15.9 mm)
Grease FittingNo
Rod End Construction2-piece
Heat-TreatedYes
Rod End Head Width0.625 in (15.9 mm)
Rod End Static Load Capacity (Lbs.)16,238
Rod End MaterialChromoly
Rod End StylePTFE/KEVLAR« lined
Part FitmentUniversal
Vendor Part NumberXML8
Package Qty1
Package TypeEA
