Vehicle Info NeededQA1PART NUMBER: 122-XMR3

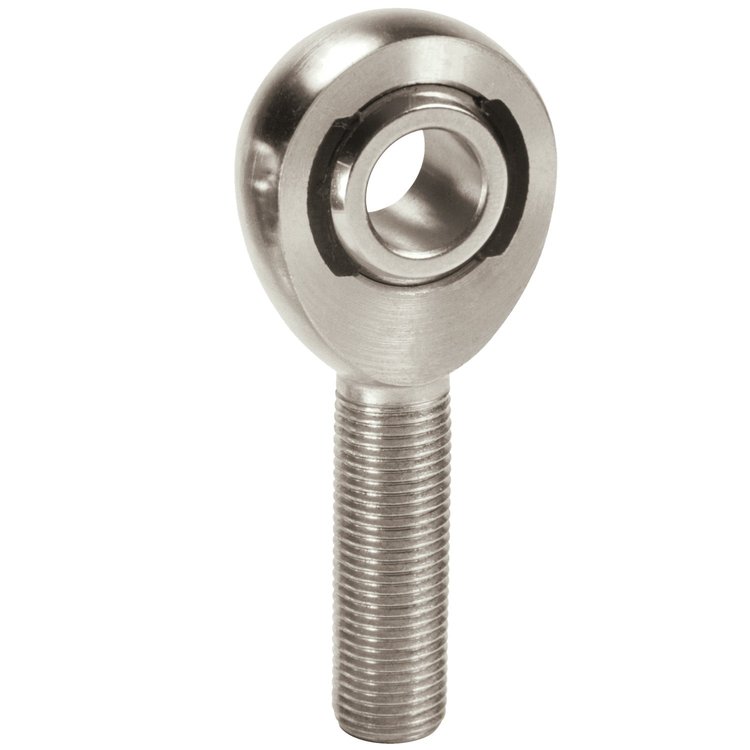

XM Chromoly Steel Series Rod End Hole I.D.: .1900"
$1099
9 left in stock
Ships Today
Lowest Price GuaranteeXM Chromoly Steel Series Rod EndRight Hand Thread
- XM Chromoly Steel Series Rod End
- Hole I.D.: .1900"
- RH Thread: 10-32
ROD END (X) ENDURA ALLOY HT , M-R 3/16-3/16
XM Male Chromoly Steel Series Rod Ends: For the ultimate in performance rod ends, look no further than QA1's XM Chromoly Steel Series Male rod ends. These heavy duty rod ends are commonly used on 4-link and ladder bars for their strength and durability. XM Series rod ends are completely self-sealing and self-lubricating because of their PTFE®/Kevlar® injection molded race that keeps dirt and debris out.
- Ball: 52100 Bearing Steel, Heat Treated, Hard Chrome Plated, Precision Ground
- Race: PTFE®/Kevlar®, Self-Lubricating, Self-Sealing
- Body: Chromoly Steel, Heat Treated, Protective Coated for Corrosion Resistance
- Exclusive Features: Metal to Metal Support for Heavy Shock Loads and Increased Cross-Sectional Thickness for Greater Tensile Strength.
Show More
QA1 Endura X-Series Chromoly Steel Rod Ends are also available with Female threads
Part TypeRod End
Product LineQA1 Endura XM Series Male Rod Ends
BrandQA1
Package Height1.9
Package Width2.5
Package Length4.6
Weight0.35 PG
Part CategoryPerformance Parts
Rod End AttachmentMale Threads
Rod End FinishZinc plated
Rod End Thread Size10-32 RH NF
Thread Length0.75 in (19.1 mm)
Rod End Head Bore Size0.19 in (4.8 mm)
QuantitySold individually
Rod End Centerline Length1.25 in (31.8 mm)
Jam Nut IncludedNo
Rod End Misalign Angle (Deg)13 degrees
Rod End Head Diameter0.625 in (15.9 mm)
Rod End Ball Width0.312 in (7.9 mm)
Grease FittingNo
Rod End Construction2-piece
Heat-TreatedYes
Rod End Head Width0.312 in (7.9 mm)
Rod End Static Load Capacity (Lbs.)2,851
Rod End MaterialChromoly
Rod End StylePTFE/KEVLAR« lined
Part FitmentUniversal
Vendor Part NumberXMR3
Package Qty1
Package TypeEA
