QA1PART NUMBER: 122-XMR5-6

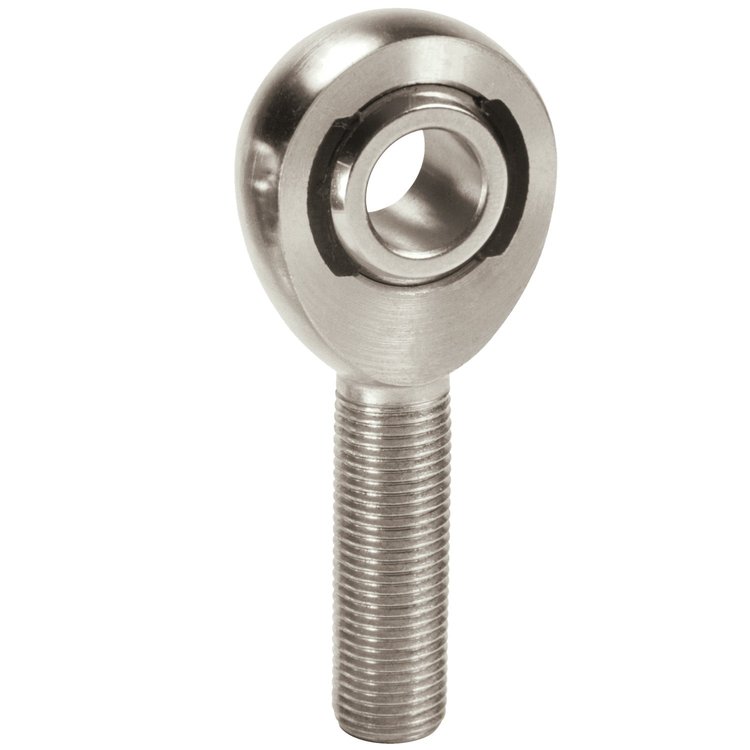

ROD END (X) ENDURA ALLOY HT M-R 5/16-3/8

Name: ROD END (X) ENDURA ALLOY HT M-R 5/16-3/8
Brand: QA1
SKU: 122-XMR5-6
Price: 11.99 USD
Availability: InStock

^$11⁹⁹

Ships on 09/10/2026

Lowest Price Guarantee

XM Chromoly Steel Series Rod End

Right Hand Thread

Part TypeRod End

BrandQA1

Package Height0.7

Package Width2.8

Package Length3.3

Weight0.07 PG

Part CategoryPerformance Parts

Rod End AttachmentMale Threads

Rod End FinishZinc plated

Thread Length1.25 in (31.8 mm)

Rod End Head Bore Size0.313 in (8 mm)

Rod End Thread Size (In.)3/8-24 RH

QuantitySold individually

Rod End Centerline Length1.938 in (49.2 mm)

Jam Nut IncludedNo

Rod End Misalign Angle (Deg)12 degrees

Rod End Head Diameter1 in (25.4 mm)

Rod End Ball Width0.437 in (11.1 mm)

Grease FittingNo

Rod End Construction2-piece

Heat-TreatedYes

Rod End Head Width0.437 in (11.1 mm)

Rod End Static Load Capacity (Lbs.)10,382

Rod End MaterialChromoly

Rod End StylePTFE/KEVLAR« lined

Part FitmentUniversal

Vendor Part NumberXMR5-6

Package Qty1

Package TypeEA
