Vehicle Info NeededQA1PART NUMBER: 122-XMR7-8

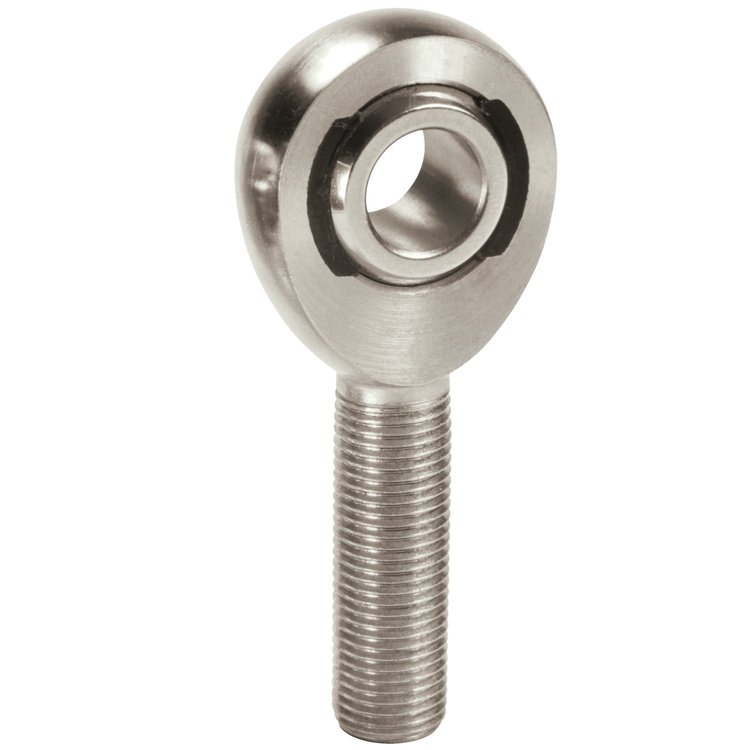

ROD END (X) ENDURA ALLOY HT M-R 7/16-1/2
$2199
1 left in stock
Ships Today
Lowest Price Guarantee- ROD END (X) ENDURA ALLOY HT M-R 7/16-1/2
- For the ultimate in performance rod ends, look no further than QA1?s XM Chromoly Steel Series male rod ends. These heavy duty rod ends are commonly used on 4-link and ladder bars for their strength and durability. XM Series rod ends are completely self-sealing and self-lubricating because of their Nylon/PTFE injection molded race that keeps dirt and debris out.` For the ultimate in performance rod
XM Male Chromoly Steel Series Rod Ends: For the ultimate in performance rod ends, look no further than QA1's XM Chromoly Steel Series Male rod ends. These heavy duty rod ends are commonly used on 4-link and ladder bars for their strength and durability. XM Series rod ends are completely self-sealing and self-lubricating because of their PTFE®/Kevlar® injection molded race that keeps dirt and debris out.
- Ball: 52100 Bearing Steel, Heat Treated, Hard Chrome Plated, Precision Ground
- Race: PTFE®/Kevlar®, Self-Lubricating, Self-Sealing
- Body: Chromoly Steel, Heat Treated, Protective Coated for Corrosion Resistance
- Exclusive Features: Metal to Metal Support for Heavy Shock Loads and Increased Cross-Sectional Thickness for Greater Tensile Strength.
Show More
QA1 Endura X-Series Chromoly Steel Rod Ends are also available with Female threads
Part TypeRod End
Product LineQA1 Endura XM Series Male Rod Ends
BrandQA1
Package Height2.6
Package Width3.5
Package Length4.6
Weight0.3 PG
Part CategoryPerformance Parts
Rod End AttachmentMale Threads
Rod End FinishZinc plated
Thread Length1.5 in (38.1 mm)
Rod End Head Bore Size0.438 in (11.1 mm)
Rod End Thread Size (In.)1/2-20 RH
QuantitySold individually
Rod End Centerline Length2.438 in (61.9 mm)
Jam Nut IncludedNo
Rod End Misalign Angle (Deg)12 degrees
Rod End Head Diameter1.312 in (33.3 mm)
Rod End Ball Width0.562 in (14.3 mm)
Grease FittingNo
Rod End Construction2-piece
Heat-TreatedYes
Rod End Head Width0.562 in (14.3 mm)
Rod End Static Load Capacity (Lbs.)18,761
Rod End MaterialChromoly
Rod End StylePTFE/KEVLAR« lined
Part FitmentUniversal
Vendor Part NumberXMR7-8
Package Qty1
Package TypeEA
