Vehicle Info NeededQA1PART NUMBER: 122-YPB10T

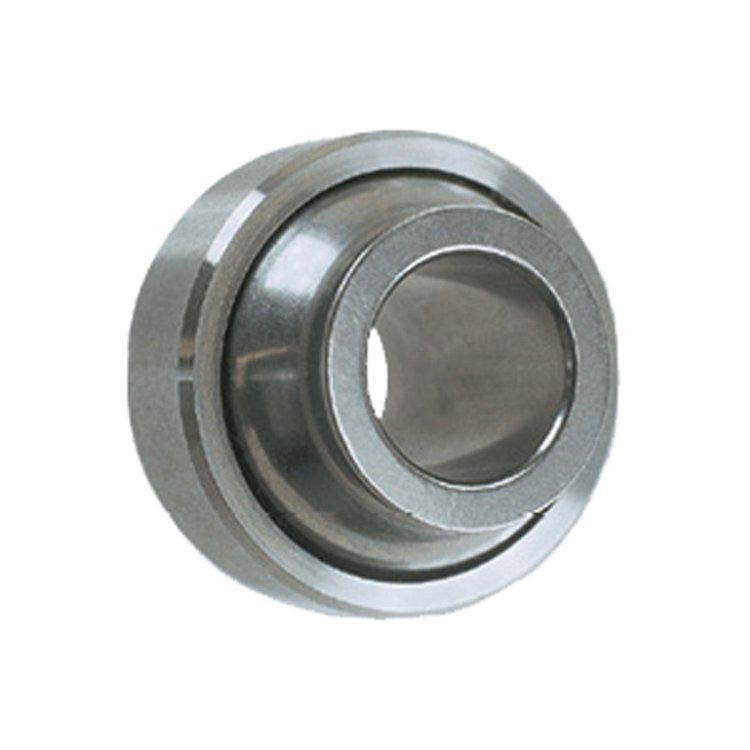

High Misalignment 440C SS Shperical Bearing Hole Size: 0.625"
$3099
More than 10 available
Ships Today
Lowest Price GuaranteeStandard Series
- High Misalignment 440C SS Shperical Bearing
- Hole Size: 0.625"
- Width: 1.2"
- Outside Diameter: 1.375"
BEARING (YPB) MISALIGN SS HT/ , SS HT 5/8 TEF
These spherical bearings from QA1 are manufactured from high quality 440C Stainless Steel. The COM/COM-T series is available with a PTFE Liner.
Ball
- 440C Stainless Steel
- Heat Treated
- Hard Chrome Plated
- Precision Ground
- Stainless Steel
- Heat Treated
- PTFE Lined
Part TypeSuspension Bearing
Product LineQA1 YPB-T SS Spherical Bearing High Misalignment
BrandQA1
Package Height2.0
Package Width3.1
Package Length3.5
Weight0.25 PG
Part CategoryPerformance Parts
Ult. Static Radial Load (Lbs.)44,651
Race Width0.567 in (14.4 mm)
Receiver Race Diameter1.375 in (34.9 mm)
Rod End Bearing MaterialStainless steel
QuantitySold individually
Inner Ball Diameter0.625 in (15.875 mm)
Rod End Ball Diameter1.25 in (31.8 mm)
Chamfer Reference0.03 in (0.762 mm)
Part FitmentSemi Universal
Rod End Misalign Angle (Deg)20 degrees
Inner Ball Width1.2 in (30.48 mm)
Vendor Part NumberYPB10T
Package Qty1
Package TypeEA
