Vehicle Info NeededQA1PART NUMBER: 122-YPB5T

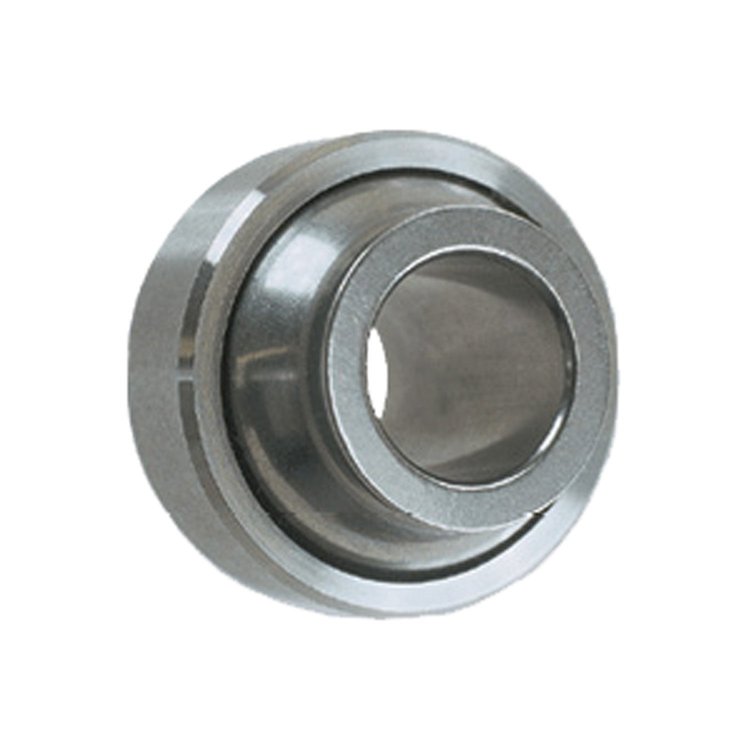

High Misalignment 440C SS Shperical Bearing Hole Size: 0.3125"
$1999
Ships on 09/09/2026
Lowest Price GuaranteeStandard Series
- High Misalignment 440C SS Shperical Bearing
- Hole Size: 0.3125"
- Width: 0.813"
- Outside Diameter: 0.906"
BEARING (YPB) MISALIGN SS HT/ , SS HT 5/16 TEF
These spherical bearings from QA1 are manufactured from high quality 440C Stainless Steel. The COM/COM-T series is available with a PTFE Liner.
Ball
- 440C Stainless Steel
- Heat Treated
- Hard Chrome Plated
- Precision Ground
- Stainless Steel
- Heat Treated
- PTFE Lined
Part TypeSuspension Bearing
Product LineQA1 YPB-T SS Spherical Bearing High Misalignment
BrandQA1
Package Height0.81
Package Width0.9
Package Length0.9
Weight0.07 PG
Part CategoryPerformance Parts
Ult. Static Radial Load (Lbs.)16,975
Race Width0.345 in (8.8 mm)
Receiver Race Diameter0.906 in (23 mm)
Rod End Bearing MaterialStainless steel
QuantitySold individually
Inner Ball Diameter0.313 in (7.95 mm)
Rod End Ball Diameter0.781 in (19.8 mm)
Chamfer Reference0.03 in (0.762 mm)
Part FitmentSemi Universal
Rod End Misalign Angle (Deg)23 degrees
Inner Ball Width0.813 in (20.65 mm)
Vendor Part NumberYPB5T
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
