Product Discontinued
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.
With Stake Grooves

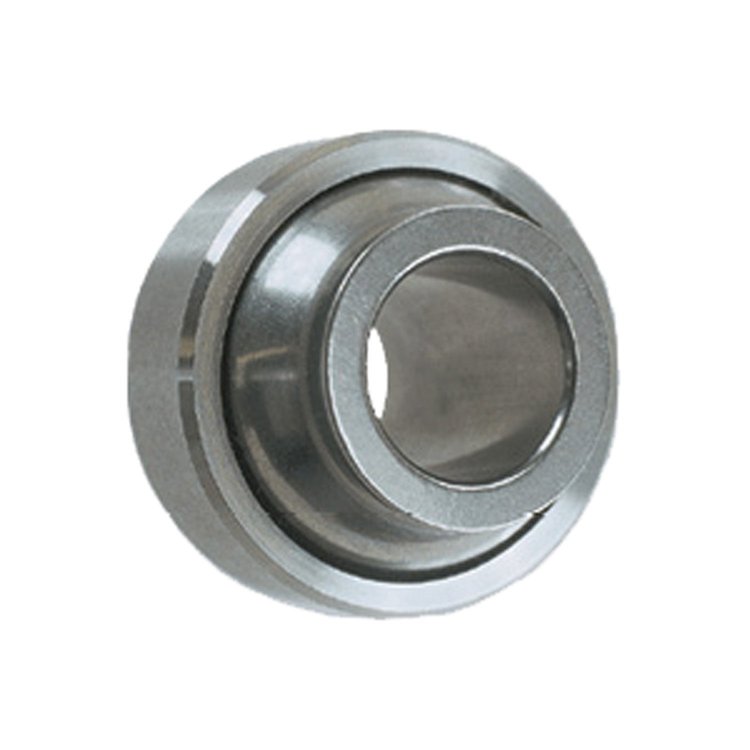

- High Misalignment 440C SS Shperical Bearing
- Hole Size: 0.3125"
- Width: 0.813"
- Outside Diameter: 0.906"
- With Stake Grooves
BEARING (YPB) MISALIGN SS HT/ , SS HT 5/16 V-GRV TEF
Part TypeSuspension Bearing
BrandQA1
Package Height0.81
Package Width0.9
Package Length0.9
Weight0.07 PG
Part CategoryPerformance Parts
Ult. Static Radial Load (Lbs.)16,975
Race Width0.345 in (8.8 mm)
Receiver Race Diameter0.906 in (23 mm)
Rod End Bearing MaterialStainless steel
QuantitySold individually
Inner Ball Diameter0.313 in (7.95 mm)
Rod End Ball Diameter0.781 in (19.8 mm)
Part FitmentSemi Universal
Rod End Misalign Angle (Deg)23 degrees
Inner Ball Width0.813 in (20.65 mm)
Vendor Part NumberYPB5TG
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
