Product Discontinued
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.
With Stake Grooves

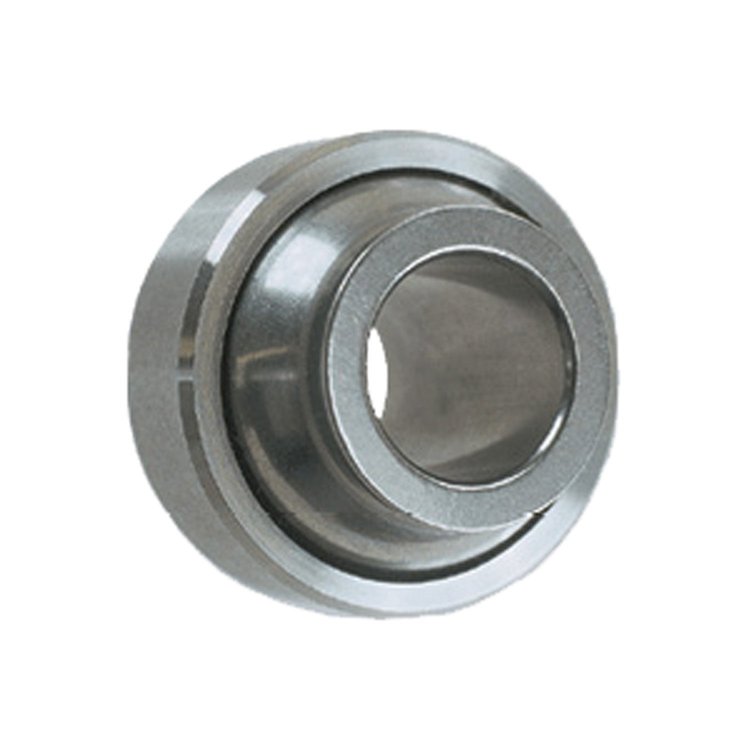

- High Misalignment 440C SS Shperical Bearing
- Hole Size: 0.375"
- Width: 0.813"
- Outside Diameter: 0.906"
- With Stake Grooves
BEARING (YPB) MISALIGN SS HT/ , SS HT 3/8 V-GRV TEF
These spherical bearings from QA1 are manufactured from high quality 440C Stainless Steel. The COM/COM-T series is available with a PTFE Liner.
Ball
- 440C Stainless Steel
- Heat Treated
- Hard Chrome Plated
- Precision Ground
- Stainless Steel
- Heat Treated
- PTFE Lined
Part TypeSuspension Bearing
Product LineQA1 YPB-T SS Spherical Bearing High Misalignment
BrandQA1
Package Height0.81
Package Width0.9
Package Length0.9
Weight0.07 PG
Part CategoryPerformance Parts
Ult. Static Radial Load (Lbs.)16,975
Race Width0.345 in (8.8 mm)
Receiver Race Diameter0.906 in (23 mm)
Rod End Bearing MaterialStainless steel
QuantitySold individually
Inner Ball Diameter0.375 in (9.525 mm)
Rod End Ball Diameter0.781 in (19.8 mm)
Part FitmentSemi Universal
Rod End Misalign Angle (Deg)23 degrees
Inner Ball Width0.813 in (20.65 mm)
Vendor Part NumberYPB6TG
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
