Vehicle Info NeededQA1PART NUMBER: 122-YPB8T

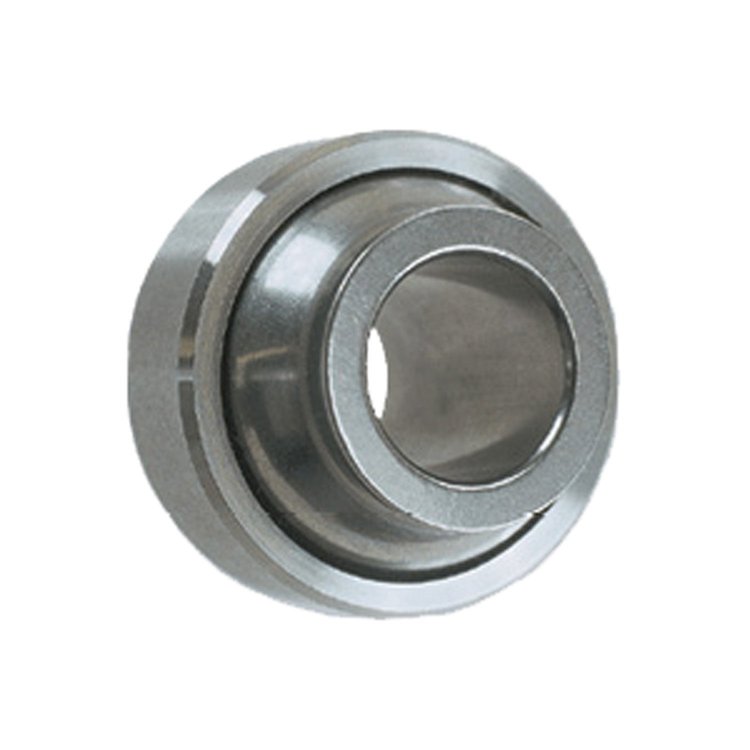

High Misalignment 440C SS Shperical Bearing Hole Size: 0.50"
$2087$24.99You Save$4.12
6 left in stock
Ships Today
Lowest Price GuaranteeStandard Series
- High Misalignment 440C SS Shperical Bearing
- Hole Size: 0.50"
- Width: 0.937"
- Outside Diameter: 1.125"
BEARING (YPB) MISALIGN SS HT/ , SS HT 1/2 TEF
These spherical bearings from QA1 are manufactured from high quality 440C Stainless Steel. The COM/COM-T series is available with a PTFE Liner.
Ball
- 440C Stainless Steel
- Heat Treated
- Hard Chrome Plated
- Precision Ground
- Stainless Steel
- Heat Treated
- PTFE Lined
Part TypeSuspension Bearing
Product LineQA1 YPB-T SS Spherical Bearing High Misalignment
BrandQA1
Package Height0.93
Package Width1.12
Package Length1.12
Weight0.13 PG
Part CategoryPerformance Parts
Ult. Static Radial Load (Lbs.)25,263
Race Width0.401 in (10.2 mm)
Receiver Race Diameter1.125 in (28.6 mm)
Rod End Bearing MaterialStainless steel
QuantitySold individually
Inner Ball Diameter0.5 in (12.7 mm)
Rod End Ball Diameter1 in (25.4 mm)
Chamfer Reference0.03 in (0.762 mm)
Part FitmentSemi Universal
Rod End Misalign Angle (Deg)20 degrees
Inner Ball Width0.937 in (23.8 mm)
Vendor Part NumberYPB8T
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
