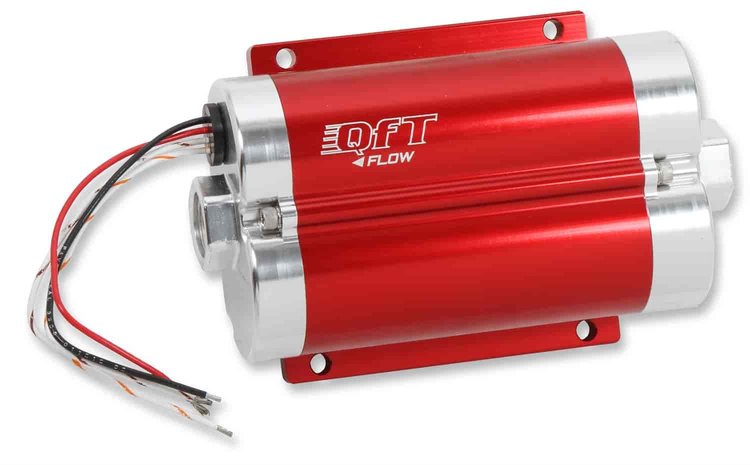

Electric Inline Fuel Pump 160 GPH

Name: Electric Inline Fuel Pump 160 GPH
Brand: QUICK FUEL
SKU: 793-30-200QFT
Price: 515.95 USD
Availability: OutOfStock

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

QFT 160 Electric Fuel Pump

Electric Inline Fuel Pump

160 GPH Free Flow

-10AN Inlet and Outlet Ports 7/8"-14 SAE

This part is legal for use on Uncontrolled (Non-Emissions Controlled) Vehicles or Racing Vehicles.

The following vehicles are considered Uncontrolled (Non-Emissions Controlled) Vehicles:

1965 and older U.S. manufactured California Certified vehicles
1967 and older U.S. manufactured Federally Certified vehicles
1967 and older Foreign manufactured vehicle

Racing Vehicles are vehicles that are used exclusively for racing or other forms of competition that are not registered and that may never be used on the street.

Supports up to 1600 EFI or 1800 Carb HP
Compatible with Pump Gas & Race Gas
Will not work with Methanol, E-85 or Diesel
Internal bypass not included. A bypass style regulator and return line are required
Not designed to use a standard conical seat style union in the inlet or outlet of the pump

Quick Fuel QFT Series Fuel Pumps are high performance fuel delivery systems for the street and strip. Designed for carbureted engines, with models supporting up to 3900 horsepower, these fuel pumps deliver!

Features:

Manufactured In The USA Out Of Aircraft Grade (6061) Aluminum With A Hard Coat Anodized Finish.
New 6-Vane And Rotor Design Supplies More Usable Fuel In The Critical "Sweet Spot" Between 12 and 20 PSI.
Vanes Are Carbon Graphite For Long Life and Corrosion Protection.

New DYNA-BLUE Wear Resistant Coating On Critical Internal Parts Provides High Wear Resistance And Surface Hardness (Rockwell C 75).
316 Stainless Steel Armature Shaft
Replaceable Derlin Wear Ring
Externally Adjustable By-Pass To Eliminate Pump Cavitation And Stabilize Fuel Flow (793-30-260 & 793-30-427 Only)
1/8" NPT Gauge Port (793-30-260 & 793-30-427 Only)
Compatible With 12-Volt And 16-Volt Electrical Systems.
Compatible With Gasoline, E85 Or Alcohol.
Flow, Pressure and Leak Tested At Factory
JEGS Easy Kits are designed by JEGS Professionals to help you get all the performance parts you need.
