1050cfm QFX 4-bbl Carburetor Kit 3-Circuit
InfoVehicle Info Needed
QUICK FUELPART NUMBER: 793-FX-4710K

1050cfm QFX 4-bbl Carburetor Kit 3-Circuit

$1,73693
ShippingShips on 11/02/2026
Lowest PriceLowest Price Guarantee

Gasoline
    1050cfm QFX 4-bbl Carburetor Kit
  • 3-Circuit
  • 1.710" Venturi x 2.000" Throttle Bore
  • Includes carb, fuel log, and fuel pressure gauge

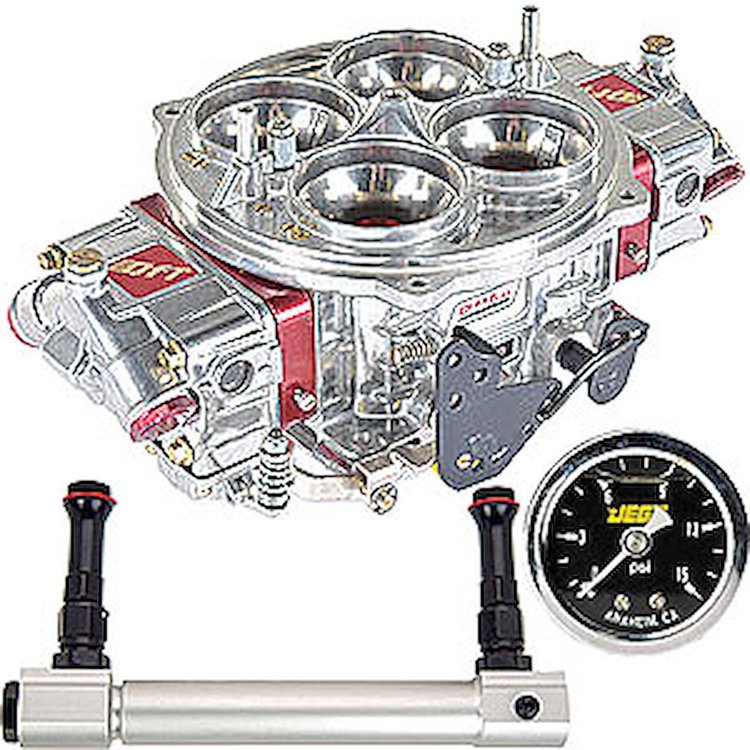

  • Kit includes QFX Carburetor 793-FX-4710, JEGS Fuel Log 555-15601, and JEGS Fuel Pressure Gauge 555-41010
  • Nitrophyl floats (notched rear) and jet extensions
  • Viton .130" needle & seat

Emissions Note:

This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART

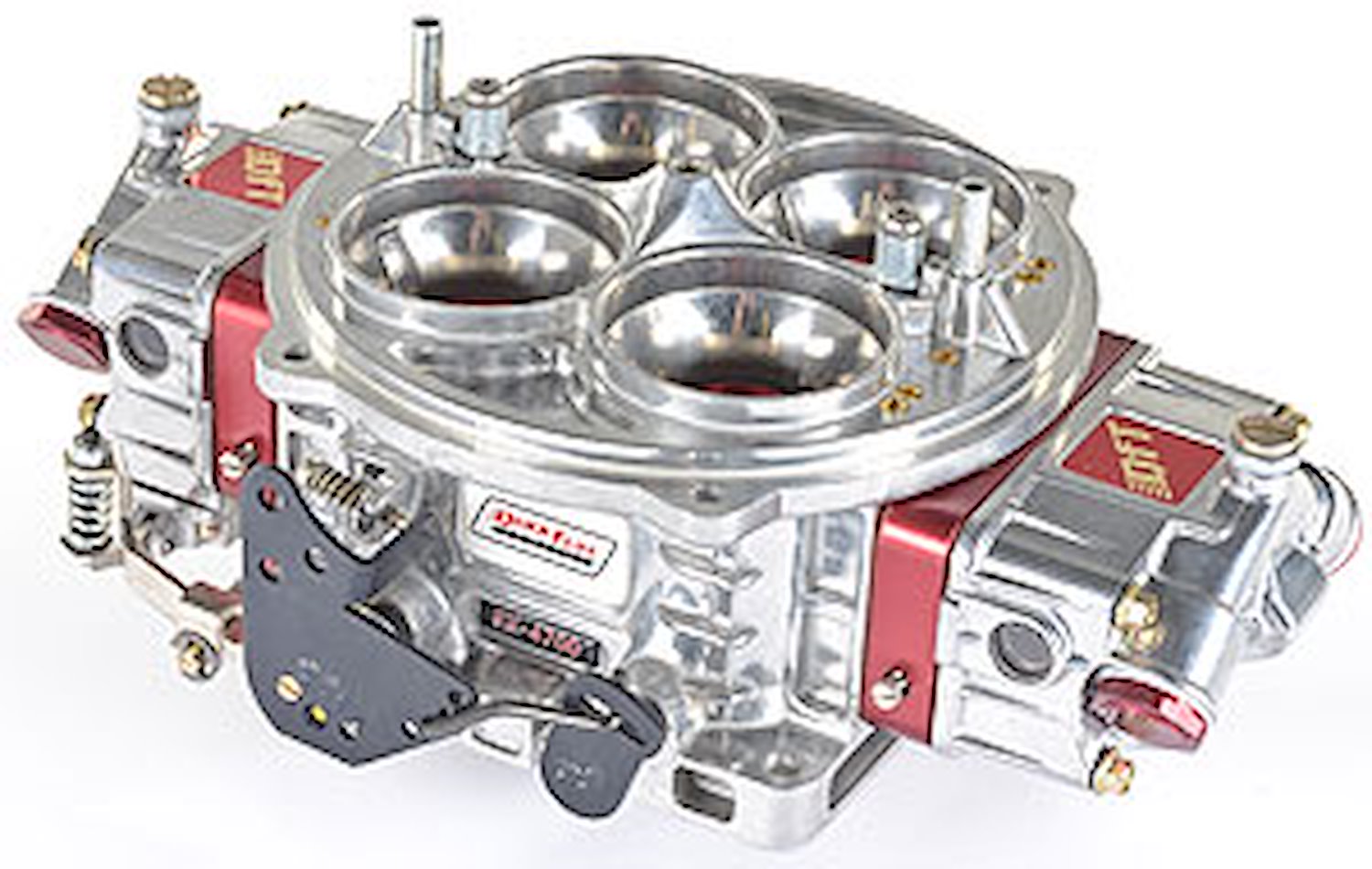

For serious drag race applications, all-aluminum Quick Fuel QFX Carburetors were developed with the racer in mind. A distinctive lightweight main body with lengthened venturi offers more mid-range torque, which is great for both throttle stop and bracket racing. Heads-up racers benefit from the raised intermediate system that provides a stronger signal and better flow to the booster venturi. QFX Carbs come with all-new billet metering blocks designed for each fuel type: gas, methanol, and E85. Strong and reliable cast aluminum fuel bowls have dual threaded fuel inlets & dual sight glass for simple float level setting. Dedicated floats ensure maximum performance without additional upgrades. CNC'd billet aluminum booster inserts provide refined air entry/exit for improved fuel emulsion resulting in superior combustion (gas carbs have 12 discharge holes compared to the standard 8).

Show More

Features:

  • Range: 525 to 1450 cfm (some carburetors available in a kit*)
  • Purpose-built for drag racing
  • Hand assembled & engine tested
  • Lightweight aluminum construction
  • Main body with extended venturi for greater mid-range torque
  • Billet metering blocks specific to fuel
  • Cast aluminum fuel bowls
  • Easy float level adjustment
  • Annular boosters
  • CNC-machined billet aluminum booster inserts provide enhanced air entry/exit, improved fuel emulsion, and superior combustion
  • External linkage with four links to choose the amount of primary throttle opening before the secondaries open: Moderate Progressive (25%), Medium Progressive (40%), Full Progressive (50%), and 1:1

JEGS Easy Kits are designed by JEGS Professionals to help you get all the performance parts you need.

*Kits include: specified QFX Carburetor, JEGS Fuel Log #555-15601, and JEGS Fuel Pressure Gauge #555-41010.

Part TypeCarburetor Kit
Product LineQuick Fuel QFX Carburetors
BrandQUICK FUEL
Part CategoryPerformance Parts
Part FitmentSemi Universal
Vendor Part NumberFX-4710K
Package Qty1
Package TypeEA
Some parts are not legal for use in California or other states with similar laws / regulations
