1250cfm QFX 4-bbl Carburetor Kit 3-Circuit
Product Discontinued
QUICK FUELPART NUMBER: 793-FX-4712K

1250cfm QFX 4-bbl Carburetor Kit 3-Circuit

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

Gasoline

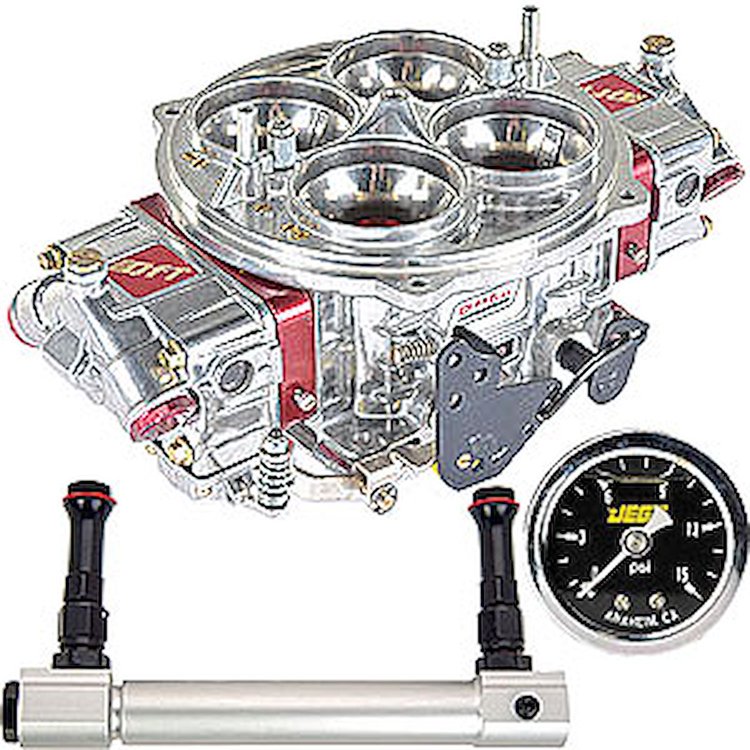

1250cfm QFX 4-bbl Carburetor Kit
  • 3-Circuit
  • 1.900" Venturi x 2.125" Throttle Bore
  • Includes carb, fuel log, and fuel pressure gauge

    • Kit includes QFX Carburetor 793-FX-4712QFT, JEGS Fuel Log 555-15601, and JEGS Fuel Pressure Gauge 555-41010
    • Calibrated for single 4-bbl applications
    • Nitrophyl floats (notched rear) and jet extensions
    • Viton .130" needle & seat

    Emissions Note:

    This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

    CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART

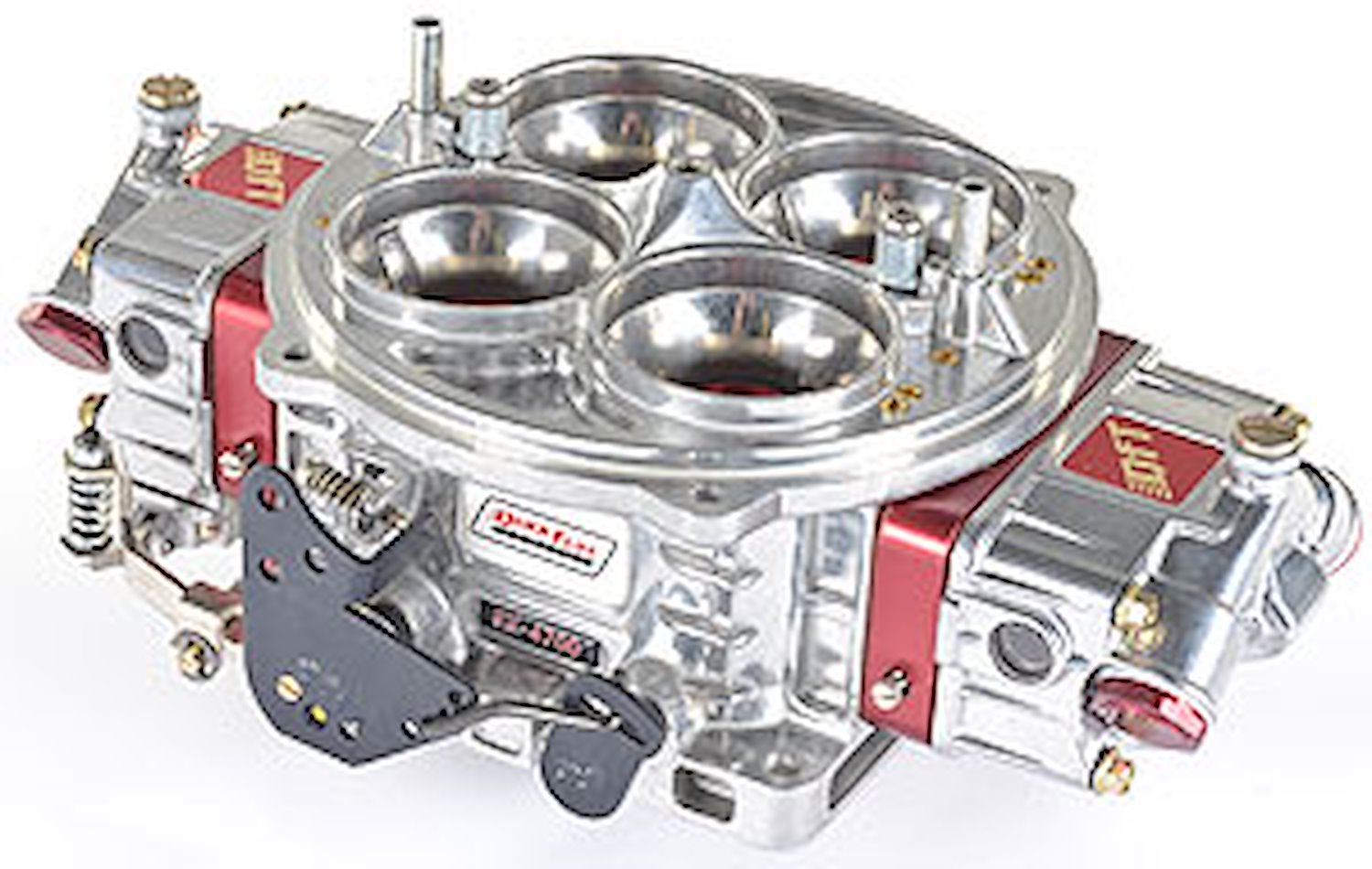

  • For serious drag race applications, all-aluminum Quick Fuel QFX Carburetors were developed with the racer in mind. A distinctive lightweight main body with lengthened venturi offers more mid-range torque, which is great for both throttle stop and bracket racing. Heads-up racers benefit from the raised intermediate system that provides a stronger signal and better flow to the booster venturi. QFX Carbs come with all-new billet metering blocks designed for each fuel type: gas, methanol, and E85. Strong and reliable cast aluminum fuel bowls have dual threaded fuel inlets & dual sight glass for simple float level setting. Dedicated floats ensure maximum performance without additional upgrades. CNC'd billet aluminum booster inserts provide refined air entry/exit for improved fuel emulsion resulting in superior combustion (gas carbs have 12 discharge holes compared to the standard 8).

    Show More

    Features:

    • Range: 525 to 1450 cfm (some carburetors available in a kit*)
    • Purpose-built for drag racing
    • Hand assembled & engine tested
    • Lightweight aluminum construction
    • Main body with extended venturi for greater mid-range torque
    • Billet metering blocks specific to fuel
    • Cast aluminum fuel bowls
    • Easy float level adjustment
    • Annular boosters
    • CNC-machined billet aluminum booster inserts provide enhanced air entry/exit, improved fuel emulsion, and superior combustion
    • External linkage with four links to choose the amount of primary throttle opening before the secondaries open: Moderate Progressive (25%), Medium Progressive (40%), Full Progressive (50%), and 1:1

    JEGS Easy Kits are designed by JEGS Professionals to help you get all the performance parts you need.

    *Kits include: specified QFX Carburetor, JEGS Fuel Log #555-15601, and JEGS Fuel Pressure Gauge #555-41010.

    Part TypeCarburetor Kit
    Product LineQuick Fuel QFX Carburetors
    BrandQUICK FUEL
    Part CategoryPerformance Parts
    Part FitmentSemi Universal
    Vendor Part NumberFX-4712K
    Package Qty1
    Package TypeEA
    Some parts are not legal for use in California or other states with similar laws / regulations
