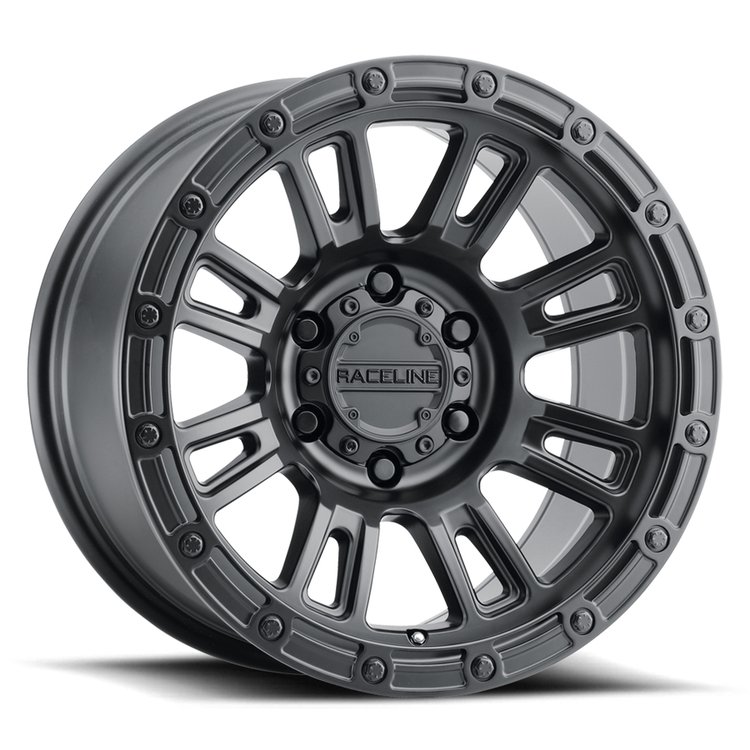

COMPASS Wheel Size: 17 X 8.5", Bolt Pattern: 6X139.7 [SATIN BLACK ]
InfoVehicle Info Needed
RACELINE WHEELSPART NUMBER: 055-956B7856000

COMPASS Wheel Size: 17 X 8.5", Bolt Pattern: 6X139.7 [SATIN BLACK ]

$31363
ShippingShips on Sep 04, 2026
Lowest PriceLowest Price Guarantee

17 in. Wheels
COMPASS Wheel
  • Size: 17x8.5"
  • Bolt Pattern: 6X139.7 mm
  • Offset: 0
  • Hub Bore: 106.1 mm
  • Load Rating: 2500 lbs.
  • Finish: SATIN BLACK

    JEGS How to Measure Wheel Fitment: Click Here

    956B7856000 Features:

    • Includes (1) blacked-out bolt-on center cap with contrasting embossed Raceline logo
    • Rugged 8-spoke split design
    • Offroad-inspired simulated vented outer beadring
    • Heavy-duty A356 aluminum construction

      • Rugged, Off-Road Inspired Wheels for Your Truck

      The Raceline 956B Compass Wheel is constructed from heavy-duty one-piece A356 cast aluminum for strength and performance. This wheel features an eight split-spoke pattern with a vented simulated Beadlock ring for an aggressive appearance. It is finished in a satin black to further stand out from the competition. Available in 17 and 18-inch sizes.

      Also available in a Satin Black with Silver Lip finish.

    Part TypeWheel
    Product LineRaceline 956B Compass Satin Black Wheels
    BrandRACELINE WHEELS
    Package Height10.5
    Package Width20.0
    Package Length20.0
    Weight25.0 PG
    Part CategoryPerformance Parts
    Center Cap FinishBlack
    Valve Stems IncludedNo
    Center Cap LogoRaceline
    QuantitySold individually
    Wheel MaterialCast Aluminum
    Wheel FinishSatin Black
    Wheel Construction1-piece
    Back Spacing4.75 in (120.65 mm)
    Center Bore Diameter4.177 in (106.096 mm)
    Beadlock FunctionalNo
    Center Cap IncludedYes
    Dot-ApprovedYes
    Wheel Diameter17 in (431.8 mm)
    Wheel Bolt Pattern6 x 5 1/2 (139.7 mm)
    Center Cap InstallationBolt-on
    Wheel TypeJeep/Truck/SUV Wheels
    Wheel Offset0 mm (0 in)
    Part FitmentUniversal
    Wheel Width8.5 in (215.9 mm)
    Vendor Part Number956B-78560-00
    Package Qty1
    Package TypeEA
