This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

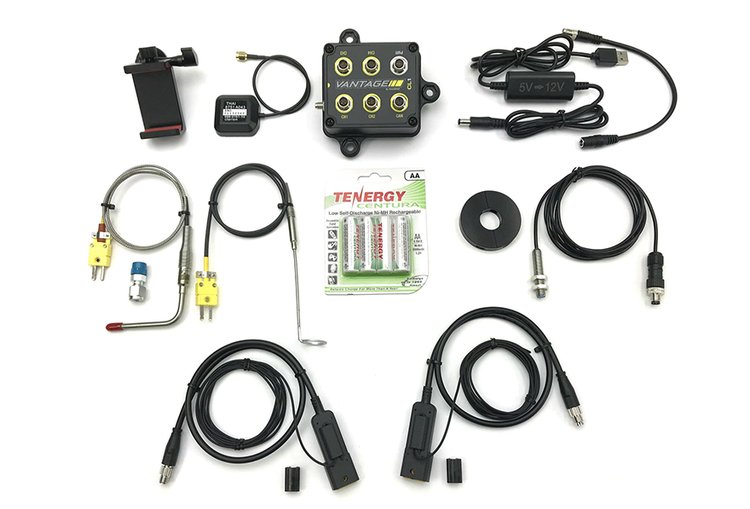

Includes:
- CL1 Jr. Dragster Data Box
- USB Charging cable and Cable Adapter
- 2 Engine RPM / Temp Harnesses – 18″
- Sensor Head Temp – Under Plug
- Exhaust Gas Temperature Sensor
- Jackshaft RPM Sensor
- GPS Antenna and Extension
- 4 AA Rechargeable Batteries
- Universal Dash Mount Bracket
- Rubber Isolation Mounts
- Jackshaft RPM Split Collar with 4 Magnets – 0.75″
RacePak's Vantage CL1 Jr. Dragster Data Kit merges the power of Racepak’s exclusive D3 App mobile technology with a CL1 data box for the most advanced, yet intuitive Jr. Dragster system available. The Vantage CL1 Data Kit for Jr. Dragster applications will ultimately help lower run times and dial-in your engine for optimum performance. Vantage CL1 sensor data is transmitted via Bluetooth from the CL1 data box to a D3 app-equipped mobile device, which can be mounted behind the cockpit, displaying RPM and temperature data to the tuner. All data is automatically uploaded to Racepak’s secure cloud service via the phone’s cellular connection and is stored locally on the mobile device for immediate analysis upon return to the pit area.
Show More
In addition, the use of mobile technology also provides the exclusive ability to remotely view live on-track and recorded data from any worldwide location through the use of Racepak’s D3 app installed from the internet-connected Android or iOS device, utilizing Racepak’s subscription based cloud service.
Features:
- Helps Lower Run Times and Engine Dial-In
- 8 Sensor Inputs: 4 Analog, 4 Digital
- Rechargeable Internal Batteries
- GPS
- Bluetooth
- Cloud Upload of Data via Mobile Equipped with D3 App to RacePak's Subscribed Cloud Account
- For Jr. Dragster Applications
Kit Includes:
- Vantage CL1 Jr. Dragster Data Box
- USB Charging Cable and Charging Cable Adapter
- GPS Antenna and Extension
- 2 Engine RPM / Temp Harnesses - 18 in.
- Sensor Head Temp – Under Plug
- Exhaust Gas Temperature Sensor
- Jackshaft RPM Sensor
- Jackshaft RPM Split Collar with 4 Magnets – 0.75 in.
- 4 AA Rechargeable Batteries
- Universal Dash Mount Bracket
- Rubber Isolation Mounts
D3 App Features: *Free on Google Play and Apple Store*
- Race Dash Screen:
- Current Lap Time vs. Fastest Lap Time
- Shift Lights
- Best Lap Time
- Lap Number
- Engine RPM
- Engine Temp
- Water Temp
- Warnings
- Overview Screen
- All Lap Times From Current Outing
- RPM Max/Average
- Temp Max/Average
- Pit Dash Screen
- Live Sensor Status
- GPS, Bluetooth and Cloud Status
- CL1 Battery Status
- Data Analysis Screen
- Graphical Analysis
- Touch-Map Map-View Analysis
CL1 Data Kit - Jr. Dragster Installation
