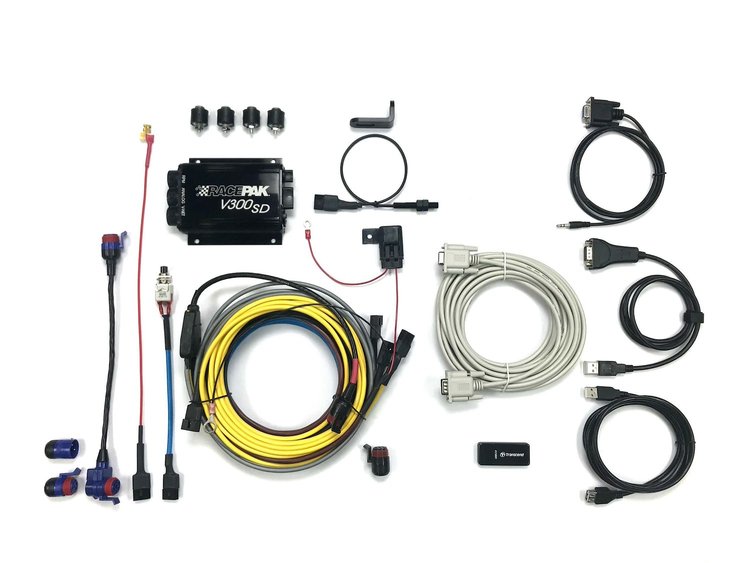

Vehicle Info Needed200-KT-V300SD1G V300SD Data Logger Door Car Kit
Ships Today
Lowest Price GuaranteeItems You Need
![Colored Electrical Tape [5 pack]](https://www.jegs.com/images/mini_200/500/555/555-w549.jpg)
![Electrical Tape [3/4 in. x 60 ft.]](https://www.jegs.com/images/mini_200/500/555/555-w502.jpg)
![890-SDWC-XGB Data Logger SD Memory Card [16 GB]](https://www.jegs.com/images/mini_200/800/806/806-890-sdwc-xgb.jpg)
![Crimp Connector Kit [160 Pieces]](https://www.jegs.com/images/mini_200/500/555/555-10705.jpg)
- V300SD Logger
- Door Car Harness
- SD Card
- DataLink Software
The 200-KT-V300SD1G V300SD Data Logger Kit [Easy Access] combines Racepak’s proven data recording technology with simplified, security-key-free access. Designed for Pro Stock, Pro Modified, Sportsman drag racing, and land speed vehicles, this system logs engine RPM, driveshaft RPM (sensor collar sold separately), G-forces, and battery voltage right out of the box. With DataLink V5 software, racers can access unlocked math channels for clutch slip, trans ratio, shock velocity, AFR, EGT, and more. Sampling up to 1000 frames per second across 83 total channels, the V300SD offers rapid data transfers via SD card to minimize downtime between rounds.
Racepak 200-KT-V300SD1G Features:
- Includes door car harness and SD memory card
- Logs engine RPM, G-meter data, battery voltage, and more
- Driveshaft RPM logging supported (collar sold separately)
- Unlocked math channels via DataLink V5 (no security key required)
- Pre-configured calculations: clutch slip %, trans ratio, shock velocity, AFR, EGT, etc.
- 83 total channels: 72 V-Net, 4 analog, 4 digital, 3 internal
- Sampling rates up to 1000 Hz
- 12–18V operating range; compatible with battery ignition systems
Emissions Note:
This part is legal for sale or uses on Emissions Controlled Vehicles, Uncontrolled (Non-Emissions Controlled) Vehicles, and Racing Use Only Vehicles because it does not affect vehicle emissions and is not covered by emissions regulations.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
Racepak Drag Racing V300SD Data Recorders are the most common recorders found in Pro Stock, Pro Modified and several Sportsman drag racing classes. The base configuration of the V300SD data recorder is capable of monitoring 6 parameters; Engine RPM, Driveshaft RPM, Accel G, Lateral G and Battery Volts and a 12-volt event. The V300SD data recorder can be expanded to monitor up to 67 channels of data in order to meet most needs, and can sample data up to 1000 times per second. The Datalink Lite software is pre-installed, giving the user the ability to record, download and perform telemetry (real-time) sessions, as well as add or remove new sensors and modules. Using a SD memory card, you can upload several hours of recorded data to your computer, and store several runs prior to uploading the data. Any monitored function can also be displayed in real time on Racepak’s IQ3 or UDX dashes (sold separately).
Show More
Channels:
- 67 Total.
- V-Net: 56.
- Analog: 4 Hard-Wired.
- Digital: 4 Hard-Wired.
- Internal: 3
Sample Rates:
- V-Net: Up To 100 Per Second.
- Analog: Up To 1000 Per Second.
- Digital: RPM and Switch Contacts Up To 100 Per Second.
- Digital: Timing Intervals Within 1/1000th Of A Second.
Memory:
- SD memory Card (Recording Time Depends On Number Of Channels Monitored and Sample Rates).
Internal Sensors:
- Battery Voltage.
- Longitudinal G-Meter (Acceleration and Deceleration).
- Lateral G-Meter (Side-To-Side Motion).
Dimensions:
- 4.374" (L) X 3.935" (W) X 1.230" (H).
Weight:
- 10oz (28kg).
Includes:
- V300SD Data Recorder.
- SD Memory Card.
- Datalink Software Kit With Serial Programming Cable.
- V-Net Tee Connector With Terminator Caps.
- Power/Ground/Engine RPM/Driveshaft Harness.
Note: - Datalink Standard adds math channels, custom run log pages and video integration.
