220-VM-AF4-1357 Wideband 4 Channel Controller
InfoVehicle Info Needed
RACEPAKPART NUMBER: 806-22VMAF41357

220-VM-AF4-1357 Wideband 4 Channel Controller

$1,43895$1599.95You Save$161.00
2 left in stock
ShippingShips Tomorrow
Lowest PriceLowest Price Guarantee

Items You Need

220-VM-AF4-2468 Wideband 4 Channel Controller

RACEPAK

220-VM-AF4-2468 Wideband 4 Channel Controller

Part Number : 806-22VMAF42468
$1,43895$1599.95
You Save$161.00
280-KT-DSHKTRVR Rear Shock Travel Sensor Kit

RACEPAK

280-KT-DSHKTRVR Rear Shock Travel Sensor Kit

Part Number : 806-28KTDSHKTRVR
$1,30395$1449.95
You Save$146.00
V-Net Air/Fuel Sensor Only

RACEPAK

V-Net Air/Fuel Sensor Only

Part Number : 806-81SNAFAMP
$12415$137.95
You Save$13.80
CABLE B SIDE LSU AMP

RACEPAK

CABLE B SIDE LSU AMP

Part Number : 806-280CALSUBAMP
$22395$249.95
You Save$26.00

4-Channel Controllers
Wideband Air/Fuel Controller with Harness
  • For 1, 3, 5, 7 Cylinder Layouts
  • Compatible with Racepak V-Net Loggers
  • Supports Gas or Methanol A/F Ratios
  • 12–18V Battery Systems
  • Includes:
    • 4 Channel Controller
    • Wiring Harness

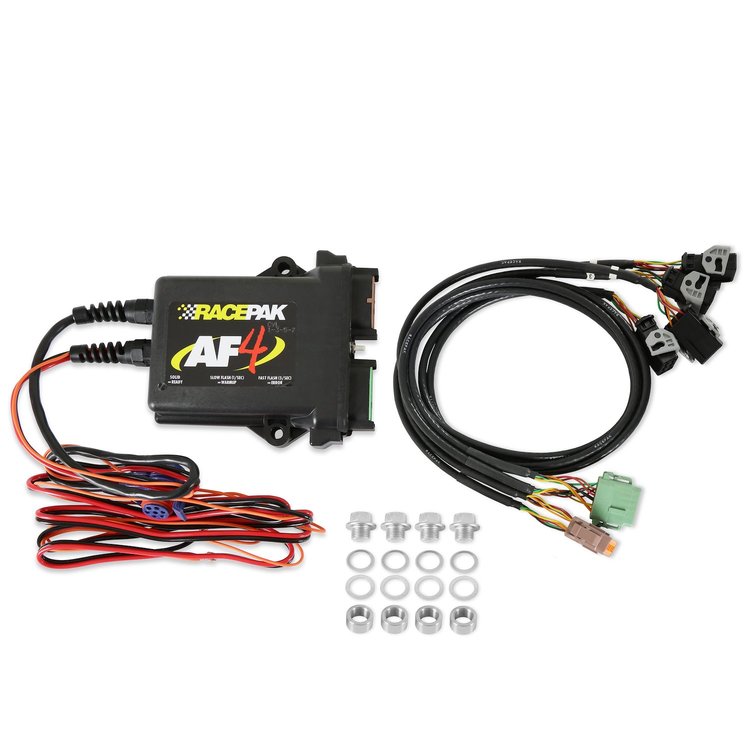

    The 220-VM-AF4-1357 Wideband 4 Channel Controller delivers precision air/fuel data acquisition for 1, 3, 5, 7 Cylinder Layouts. Designed to integrate seamlessly with Racepak V-series data loggers, this controller supports gasoline and methanol applications with broad ratio range visibility. Each unit includes a dedicated harness with fixed-length connections: 13 in. sensor leads and a 37 in. controller-to-sensor cable. V-Net compatible and suitable for use in 12–18V electrical systems.

    Racepak 220-VM-AF4-1357 Features:

    • Connects to Racepak V-Net systems for data logging
    • Supports gasoline (9.55:1–20:1) and methanol (4.22:1–8.7:1)

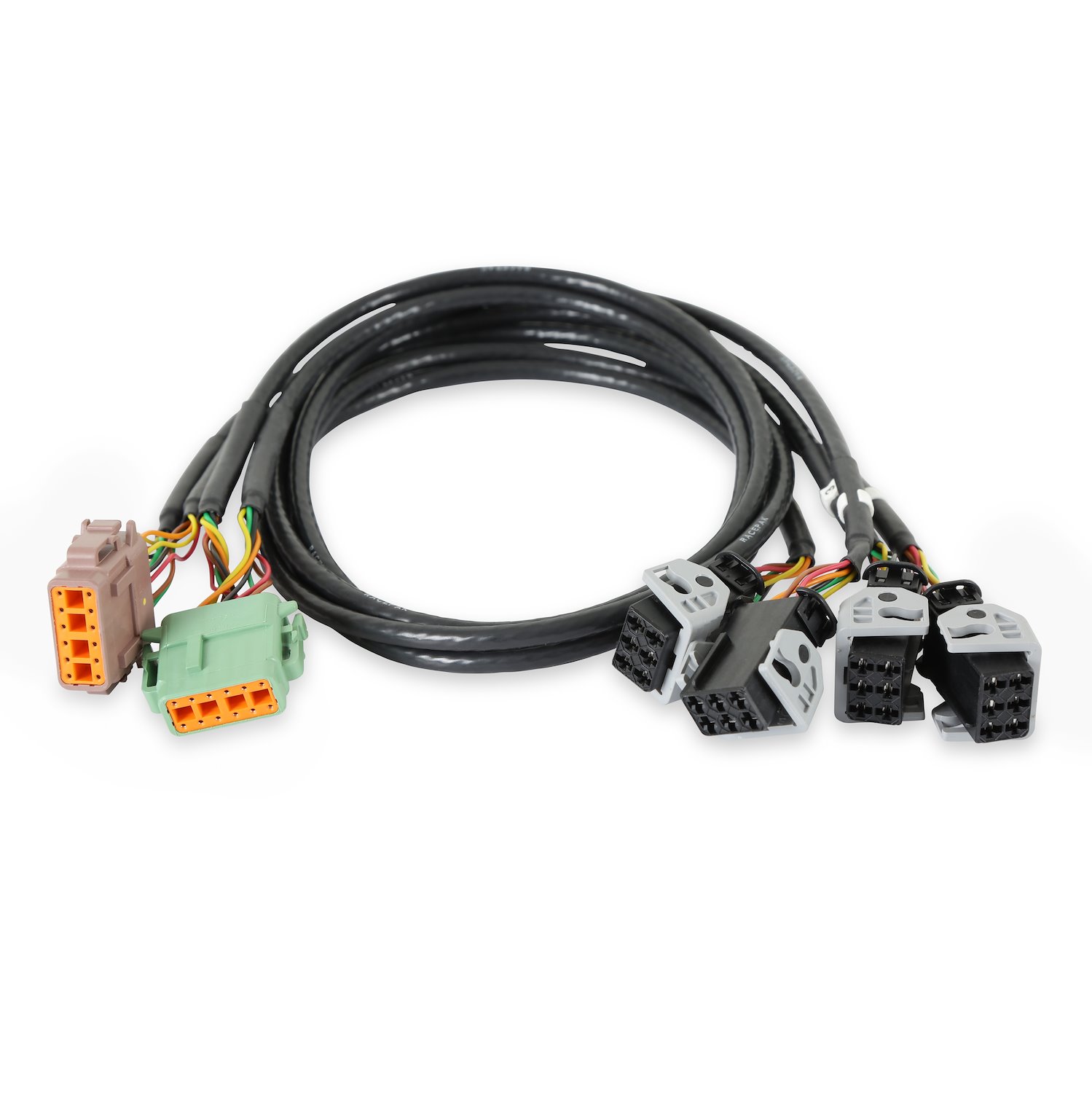

    • Fixed-length sensor (13 in.) and controller cables (37 in.)
    • Compatible with 2-, 4-, 6-, or 8-cylinder configurations
    • Works with all V-series recorders
    • For use with 12–18V DC power

    Racepak 220-VM-AF4-1357 Notes:

    • Air/fuel sensors must be ordered separately
    • Fuel type must be specified when ordering

    Emissions Note:

    This part is legal for sale or uses on Emissions Controlled Vehicles, Uncontrolled (Non-Emissions Controlled) Vehicles, and Racing Use Only Vehicles because it does not affect vehicle emissions and is not covered by emissions regulations.

    CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART

  • Smart Data Transfer

    Racepak's V-Net (Vehicle Network) technology is a "smart data" transfer network that gives you the ability to transmit multiple signals from each sensor using a single cable. This network creates a system where individual components interact with each other; providing you with a simpler, more compact system. Whether using a single gauge set-up or a full-blown data acquisition system, all components are attached using modular snap-together connectors. Racepak Cables and Connectors are designed for use with Racepak V-Series data loggers and dashes, or as direct replacements and are available in a wide range of monitoring parameters. Each item is made to meet or exceed OE specifications and constructed of the highest-quality materials for long-term durability. Engineered for the harsh conditions of the racing environment.

    Show More

    Features:

    • For RacePak V-Net Series Data Loggers, Recorders and Dashes.
    • Smart Data Transfer.
    • Withstands Racing Conditions.
    • Simple and Compact.
    • For Use With Drag Racing, Off-Road/Closed Course, and Land Speed Applications.
    Part TypeOxygen Sensor Wiring Harness
    Product LineRacepak Cables and Connectors
    BrandRACEPAK
    Package Height3.35
    Package Width5.5
    Package Length10.75
    Weight2.535 PG
    Part CategoryPerformance Parts
    MountingType-Specific Per Cylinder
    Sample Rate50 Hz
    Cylinder Layout1-3-5-7
    Channels4
    Af Range Gasoline9.55 - 20.0
    Sensors IncludedNo
    Part FitmentUniversal
    Power Supply12 - 18 V
    Fuel TypeGasoline or Methanol
    Af Range Methanol4.22 - 8.7
    Vendor Part Number220-VM-AF4-1357
    Package Qty1
    Package TypeEA
