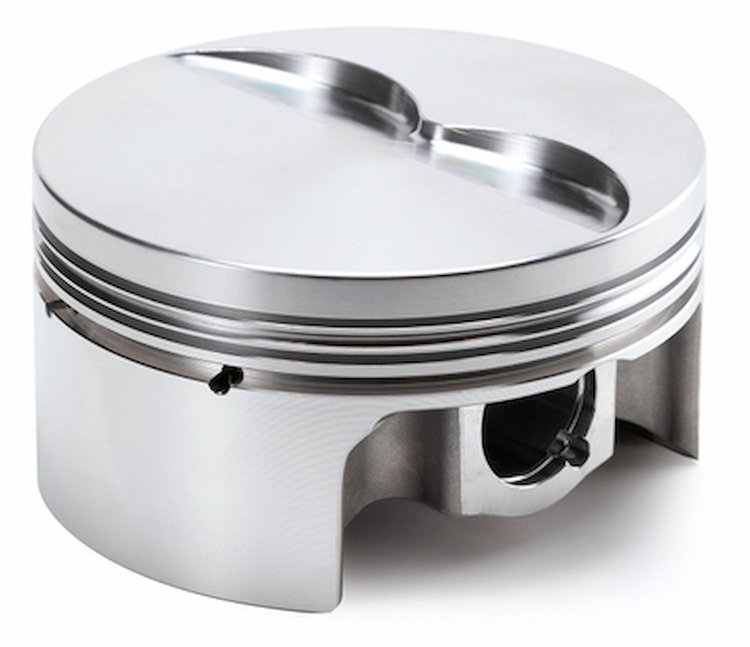

RaceTec 1000124 AutoTec Forged Flat Top Piston Set Features:

• Manufactured from low-expansion, high-silicon, 4032 material with side reliefs that's excellent for street or strip applications
• CNC Precision machined ring grooves for 1.5 mm, 1.5 mm, 3.0 mm rings
• Top ring land gas distribution groove to enhance performance and improve ring seal
• 927-2700-51-15C wrist pins, pin fitting, wire locks, broached pin oilers, and accumulator groove are included at no extra charge
• Diamond turned skirts

RaceTec 1000124 AutoTec Forged Flat Top Piston Set Specs:

• Engine Family: 23-Degree Small Block Chevy
• Displacement reference: 377 cu. in. (6.2L)
• Bore: 4 in.
• Stroke: 3.750 in.
• Rod Length: 5.850 in.
• Compression Height: 1.285 in.
• Crown Volume: -5 cc
• Piston Style: Flat Top w/2 Valve Reliefs
• Alloy: 4032
• Wrist Pin Diameter: 0.927 in.
• Ring Grooves: 1.5 mm Top, 1.5 mm Second, 3.0 mm Oil

RaceTec 1000124 AutoTec Forged Flat Top Piston Set Notes:

• Requires RaceTec AT 4000 Ring Set or Equivalent (Sold Separately)
• Compression Ratios:
  • 11.8 @ w/58 cc Heads
  • 10.9 @ w/64 cc Heads
  • 10.2 @ w/72 cc Heads
