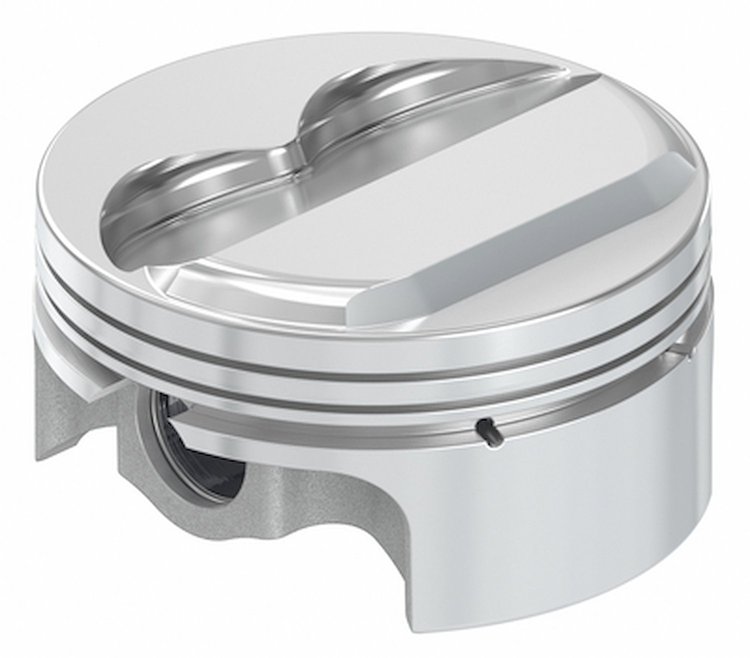

1000417 AutoTec Forged Dome Piston Set for Small Block Ford 302 20-Degree Engines [4.040 in. Bore]
InfoVehicle Info Needed
RACETEC PISTONSPART NUMBER: 613-1000417

1000417 AutoTec Forged Dome Piston Set for Small Block Ford 302 20-Degree Engines [4.040 in. Bore]

$79900
ShippingShips on 12/24/2026
Lowest PriceLowest Price Guarantee

Items You Need

Engine Assembly Lube [4 oz. Bottle]

JEGS

Engine Assembly Lube [4 oz. Bottle]

Part Number : 555-28000
$599$6.99
You Save$1.00
Piston Ring Filer & Grinder Tool 170/140 Grit

JEGS

Piston Ring Filer & Grinder Tool 170/140 Grit

Part Number : 555-80514
$4199$46.99
You Save$5.00
Plastigauge Kit

JEGS

Plastigauge Kit

Part Number : 555-80593
$1499$16.99
You Save$2.00
Piston Ring Pliers Installs and Removes Rings without Breakage

JEGS

Piston Ring Pliers Installs and Removes Rings without Breakage

Part Number : 555-80845
$647$6.99
You Save$0.52

AutoTec Forged Piston Set
  • SB Ford 302 20-Degree
  • 4.040 in. Bore
  • Forged 4032 Aluminum
  • 3 in. Stroke
  • 5.090 in. Rod Length
  • 1.600 in. Compression Height
  • 11.1 cc Crown Volume
  • 1.5 x 1.5 x 3.0 mm Ring Grooves
  • Set of 8

    Racetec 1000417 AutoTec Dome Piston Set Features:

    • Manufactured from low-expansion, high-silicon, 4032 material with side reliefs that's excellent for street or strip applications
    • CNC Precision machined ring grooves for 1.5mm, 1.5mm, 3.0mm Rings
    • Top ring land gas distribution groove to enhance performance and improve ring seal
    • 912-2700-51-15C or 927-2700-51-15C wrist pins, pin fit, wire locks, broached pin oilers and accumulator grooves are included at no extra charge
    • Diamond turned skirts

    RaceTec 1000417 Autotec Dome Piston Set Specs:

    • Engine Family: 20-Degree Small Block Ford 302
    • Displacement reference: 307 cu. in. (5.0L)
    • Bore: 4.040 in.
    • Stroke: 3 in.
    • Rod Length: 5.090 in.
    • Compression Height: 1.600 in.
    • Crown Volume: 11.1 cc
    • Piston Style: Dome
    • Alloy: 4032
    • Wrist Pin Diameter: 0.990 in.
    • Ring Grooves: 1.5 mm Top, 1.5 mm Second, 3.0 mm Oil

    RaceTec 1000417 AutoTec Dome Piston Set Notes:

    • Requires RaceTec AT 4040 Ring Set or Equivalent (Sold Separately)
    • Compression Ratios:
      • 13.1 @ w/54 cc Heads
      • 11.9 @ w/60 cc Heads
      • 11.1 @ w/64 cc Heads
  • Part TypePiston
    BrandRACETEC PISTONS
    Package Height6.0
    Package Width12.0
    Package Length12.0
    Weight12.0 PG
    Part CategoryPerformance Parts
    Pin Lock Rings IncludedYes
    Compression Height (In)1.6
    Bore (In)4.04
    Wrist Pin StylePress or Full Floating
    QuantitySet of 8
    Piston Head Volume11.1cc
    Engine Make/SizeFord Small Block
    Piston StyleDome
    Compression Ratio54cc-13.1, 60cc-11.9, 64cc-11.1
    Ring Thickness1.5 x 1.5 x 3.0 mm
    Piston MaterialForged 4032
    Pin Diameter (In)0.99
    Part FitmentSemi Universal
    Wrist Pin IncludedYes
    Snap Rings IncludedYes
    Vendor Part Number1000417
    Package Qty1
    Package TypeEA
