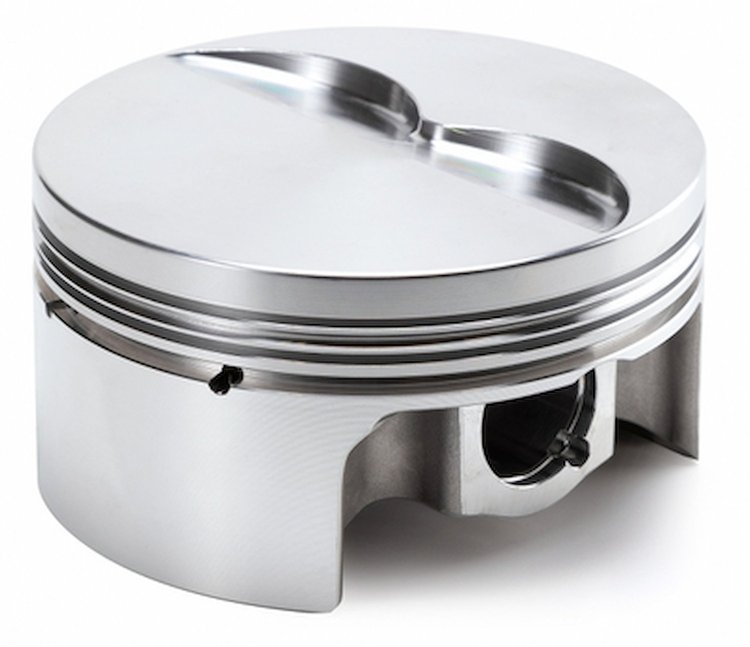

RaceTec 1000465 AutoTec Flat Top Piston Set Features:

• Manufactured from low-expansion, high-silicon, 4032 material with side reliefs that's excellent for street or strip applications
• CNC Precision machined ring grooves for 1.5mm, 1.5mm, 3.0mm rings
• Top ring land gas distribution groove to enhance performance and improve ring seal
• 912-2700-51-15C wrist pins or 927-2700-51-15C, pin fit, wire locks, broached pin oilers and accumulator grooves are included at no extra charge
• Diamond turned skirts

RaceTec 1000465 AutoTec Flat Top Piston Set Specs:

• Engine Family: 20-Degree Small Block Ford 351W
• Displacement reference: 428 cu. in. (7.0L) or 446 cu. in. (7.3L)
• Bore: 4.125 in. Bore
• Stroke: Fits Both 4 or 4.170 in.
• Rod Length: 6.200 or 6.125 in.
• Compression Height: 1.280 in.
• Crown Volume: -5 cc
• Piston Style: Flat Top w/2 Valve Reliefs
• Alloy: 4032
• Wrist Pin Diameter: 0.927 in.
• Ring Grooves: 1.5 mm Top, 1.5 mm Second, 3.0 mm Oil

RaceTec 1000465 AutoTec Flat Top Piston Set Notes:

• Requires RaceTec AT 4125 Ring Set or Equivalent (Sold Separately)
• Compression Ratios:
  • 14.2 or 14.5 @ w/54 cc Heads
  • 13.1 or 13.4 @ w/60 cc Heads
  • 11.9 or 12.2 @ w/68 cc Heads
