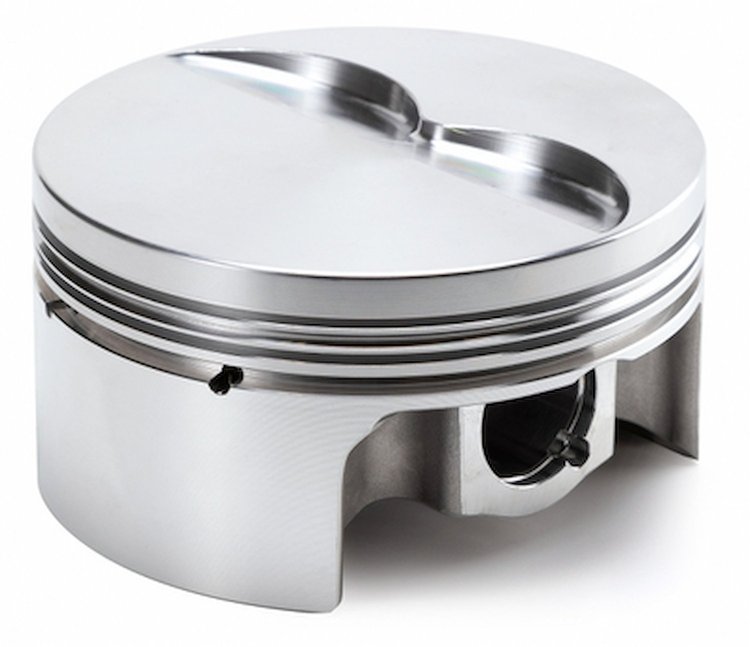

1000575 AutoTec Forged Flat Top Piston Set for Big Block Chrysler 383, 440 Engines [4.350 in. Bore]

Name: 1000575 AutoTec Forged Flat Top Piston Set for Big Block Chrysler 383, 440 Engines [4.350 in. Bore]
Brand: RACETEC PISTONS
SKU: 613-1000575
Price: 719.10 USD
Availability: InStock

^$719¹⁰$799.00You Save$79.90

Ships on 10/12/2026

Lowest Price Guarantee

AutoTec Forged Piston Set

BB Chrysler 383, 440

4.350 in. Bore

Forged 4032 Aluminum

4.500 in. Stroke

7.100 in. Rod Length

1.355 in. Compression Height

-6.7 cc Crown Volume

1/16 x 1/16 x 3/16 in. Ring Grooves

Set of 8

Racetec 1000575 AutoTec Flat Top Piston Set Features:

Manufactured from low-expansion, high-silicon, 4032 material with side reliefs that's excellent for street or strip applications
CNC Precision machined ring grooves for 1/16 in., 1/16 in., 3/16 in. rings
Top ring land gas distribution groove to enhance performance and improve ring seal
1.094-2800-51-15C wrist pins or 990-2800-51-15C wrist pins, pin fitting, wire locks, broached pin oilers and accumulator grooves are included at no extra
charge
Diamond turned skirts

RaceTec 1000575 Autotec Flat Top Piston Set Specs:

Engine Family: Big Block Chrysler 383, 440
Displacement reference: 535 cu. in. (8.8L)
Bore: 4.350 in.
Stroke: 4.500 in.
Rod Length: 7.100 in.
Compression Height: 1.355 in.
Crown Volume: -6.7 cc
Piston Style: Flat Top w/2 Valve Reliefs
Alloy: 4032
Wrist Pin Diameter: 0.990 in.
Ring Grooves: 1/16 in. Top, 1/16 in. Second, 3/16 in. Oil

RaceTec 1000575 AutoTec Flat Top Piston Set Notes:

Requires RaceTec AT 8355 Ring Set or Equivalent (Sold Separately)
Compression Ratios:
- 13.9 @ w/71 cc Heads
- 13.1 @ w/78 cc Heads
- 11.9 @ w/88 cc Heads

RaceTec AutoTec Series Pistons for Chrysler Applications – Precision 4032 Alloy Performance at an Unmatched Value

RaceTec AutoTec Series Pistons for Chrysler applications deliver high-quality, precision-manufactured forged pistons designed for builders who demand performance, durability, and affordability. Crafted from 4032 high-silicone aluminum alloy, these pistons offer excellent wear resistance, low expansion rates, and reduced friction, featuring diamond-turned ring grooves and skirts made on the same advanced equipment as RaceTec’s premium line. Engineered for muscle car restorations, performance street rods, and spec racing classes, AutoTec pistons handle mild nitrous, small turbo, or supercharged applications, with proven results exceeding 850+ horsepower in small block builds. Choose RaceTec AutoTec Series Pistons for those seeking a trusted, high-value performance solution.

Part TypePiston

Product LineRaceTec AutoTec Series Pistons for Chrysler

BrandRACETEC PISTONS

Package Height6.0

Package Width12.0

Package Length12.0

Weight14.0 PG

Part CategoryPerformance Parts

Pin Lock Rings IncludedYes

Compression Height (In)1.355

Bore (In)4.35

Wrist Pin StylePress or Full Floating
