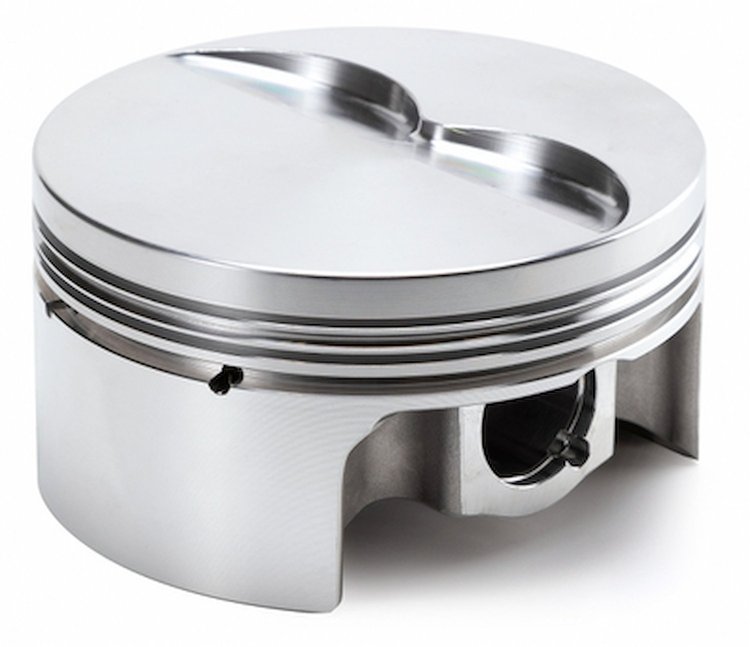

Racetec 1000967 RaceTec Flat Top Piston Set Features:

• Manufactured on 2618 material forgings that will accept most extreme racing applications
• CNC Precision used in every manufacturing operation
• Valve pockets machined for oversized valves and high lift cams
• Critically machined ring grooves for 1.5mm, 1.5mm, 3.0mm rings
• Top ring land gas distribution grooves to enhance performance and improve ring seal
• 927-2700-51-15C wrist pins, pin fit, wire locks, broached double pin oilers, and accumulator groove are included at no extra charge
• Diamond tooling used throughout production including ring grooves and skirts

RaceTec 1000967 Racetec Flat Top Piston Set Specs:

• Engine Family: Ford N351
• Displacement reference: 362 cu. in. (5.9L)
• Bore: 4.060 in.
• Stroke: 3.500 in.
• Rod Length: 3.125 in.
• Compression Height: 1.325 in.
• Crown Volume: 0 cc
• Piston Style: Flat Top w/2 Valve Reliefs
• Alloy: 2618
• Wrist Pin Diameter: 0.927 in.
• Ring Grooves: 1.5 mm Top, 1.5 mm Second, 3.0 mm Oil

RaceTec 1000967 RaceTec Flat Top Piston Set Notes:

• Compression Ratios:
  • 11.1 @ w/56 cc Heads
  • 11.9 @ w/60 cc Heads
  • 11 @ w/64 cc Heads
