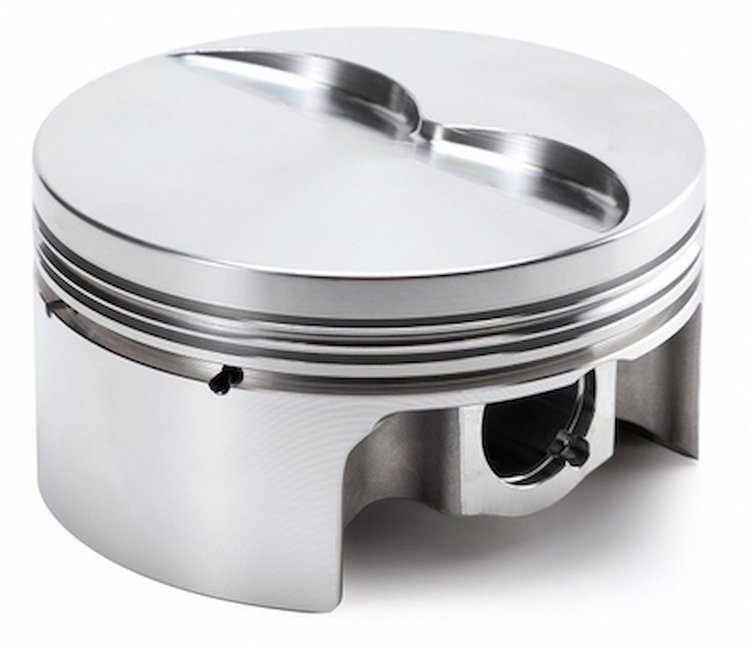

1001411 RaceTec Forged Flat Top Piston Set for Ford Modular 4.6, 3 Valve Engines [3.572 in. Bore]
InfoVehicle Info Needed
RACETEC PISTONSPART NUMBER: 613-1001411

1001411 RaceTec Forged Flat Top Piston Set for Ford Modular 4.6, 3 Valve Engines [3.572 in. Bore]

$1,09700
ShippingShips on 12/14/2026
Lowest PriceLowest Price Guarantee

Items You Need

Engine Assembly Lube [4 oz. Bottle]

JEGS

Engine Assembly Lube [4 oz. Bottle]

Part Number : 555-28000
$599$6.99
You Save$1.00
Piston Ring Filer & Grinder Tool 170/140 Grit

JEGS

Piston Ring Filer & Grinder Tool 170/140 Grit

Part Number : 555-80514
$4199$46.99
You Save$5.00
Plastigauge Kit

JEGS

Plastigauge Kit

Part Number : 555-80593
$1499$16.99
You Save$2.00
Piston Ring Pliers Installs and Removes Rings without Breakage

JEGS

Piston Ring Pliers Installs and Removes Rings without Breakage

Part Number : 555-80845
$647$6.99
You Save$0.52

RaceTec Forged Piston Set
  • Ford Modular 4.6, 3 Valve
  • 3.572 in. Bore
  • Forged 2618 Aluminum
  • 3.543 in. Stroke
  • 5.933 in. Rod Length
  • 1.220 in. Compression Height
  • -3.6 cc Crown Volume
  • 1.5 x 1.5 x 3.0 mm Ring Grooves
  • Set of 8

    Racetec 1001411 RaceTec Flat Top Piston Set Features:

    • Manufactured on 2618 material forgings that will accept mild blown or nitrous applications
    • CNC Precision used in every manufacturing operation
    • Valve pockets machined for oversized valves and high lift cams
    • Critically machined ring grooves for 1.5mm, 1.5mm, 3.0mm rings
    • Top ring land gas distribution grooves to enhance performance and
    • improve ring seal
    • 866-2400-51-15C or 927-2500-51-15C wrist pins, pin fit, wire locks, broached double pin oilers, and accumulator groove are included at no extra charge
    • Diamond tooling used throughout production including ring grooves and skirts

    RaceTec 1001411 Racetec Flat Top Piston Set Specs:

    • Engine Family: Ford Modular 4.6, 3 Valve
    • Displacement reference: 284 cu. in. (4.7L)
    • Bore: 3.572 in.
    • Stroke: 3.543 in.
    • Rod Length: 5.933 in.
    • Compression Height: 1.220 in.
    • Crown Volume: -3.6 cc
    • Piston Style: Flat Top w/2 Valve Reliefs
    • Alloy: 2618
    • Wrist Pin Diameter: 0.866 in.
    • Ring Grooves: 1.5 mm Top, 1.5 mm Second, 3.0 mm Oil

    RaceTec 1001411 RaceTec Flat Top Piston Set Notes:

    • Compression Ratios:
      • 11.2 @ w/50 cc Heads

      • RaceTec Series Pistons For Ford Applications: Ultimate 2618 Alloy Strength For High-Horsepower Builds

      RaceTec Series Pistons represent the highest level of precision-engineered performance, manufactured from forged or billet 2618 aluminum alloy for extreme durability and strength. Designed using advanced CAD technology and modern CNC machining, these pistons feature diamond-turned ring grooves and skirts for superior sealing, reduced friction, and consistent performance under high horsepower demands. The RaceTec Series provides proven reliability for everything from shelf applications with mild nitrous or boost to fully custom Top Fuel, vintage racing, and extreme power builds.

    Part TypePiston
    Product LineRaceTec Series Pistons for Ford
    BrandRACETEC PISTONS
    Package Height6.0
    Package Width12.0
    Package Length12.0
    Weight12.0 PG
    Part CategoryPerformance Parts
    Pin Lock Rings IncludedYes
    Compression Height (In)1.22
    Bore (In)3.572
    Wrist Pin StylePress or Full Floating
    QuantitySet of 8
    Piston Head Volume-3.6cc
    Engine Make/SizeFord Small Block
    Piston StyleFlat Top
    Compression Ratio50cc-11.2
    Ring Thickness1.5 x 1.5 x 3.0 mm
    Piston MaterialForged 2618
    Pin Diameter (In)0.866
    Part FitmentSemi Universal
    Wrist Pin IncludedYes
    Snap Rings IncludedYes
    Vendor Part Number1001411
    Package Qty1
    Package TypeEA
