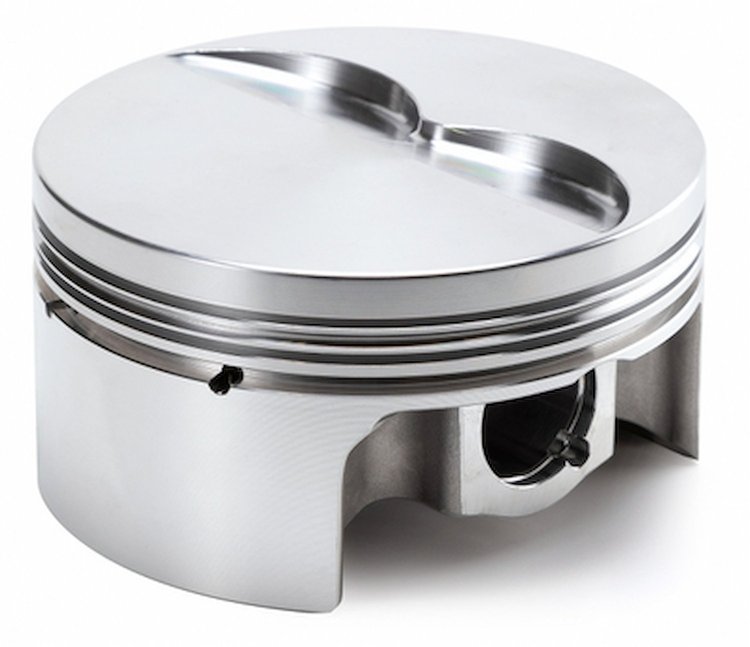

1001764 AutoTec Forged Flat Top Piston Set for 312 Y Block Ford Engines [3.840 in. Bore]
InfoVehicle Info Needed
RACETEC PISTONSPART NUMBER: 613-1001764

1001764 AutoTec Forged Flat Top Piston Set for 312 Y Block Ford Engines [3.840 in. Bore]

$1,02900
ShippingShips on 12/28/2026
Lowest PriceLowest Price Guarantee

Items You Need

Engine Assembly Lube [4 oz. Bottle]

JEGS

Engine Assembly Lube [4 oz. Bottle]

Part Number : 555-28000
$599$6.99
You Save$1.00
Piston Ring Filer & Grinder Tool 170/140 Grit

JEGS

Piston Ring Filer & Grinder Tool 170/140 Grit

Part Number : 555-80514
$4199$46.99
You Save$5.00
Plastigauge Kit

JEGS

Plastigauge Kit

Part Number : 555-80593
$1499$16.99
You Save$2.00
Piston Ring Pliers Installs and Removes Rings without Breakage

JEGS

Piston Ring Pliers Installs and Removes Rings without Breakage

Part Number : 555-80845
$647$6.99
You Save$0.52

AutoTec Forged Piston Set
  • 312 Y Block Ford
  • 3.840 in. Bore
  • Forged 4032 Aluminum
  • 3.438 in. Stroke
  • 6.252 in. Rod Length
  • 1.780 in. Compression Height
  • 0 cc Crown Volume
  • 1.5 x 1.5 x 3.0 mm Ring Grooves
  • Set of 8

    Racetec 1001764 AutoTec Flat Top Piston Set Features:

    • Manufactured on 4032 material that will accept high performance applications
    • CNC Precision used in every manufacturing operation
    • Valve pockets machined for oversized valves and high lift cams
    • Critically machined ring grooves for 1.5mm, 1.5mm, 3.0mm rings
    • Top ring land gas distribution grooves to enhance performance and improve ring seal
    • 990-2800-51-15C Heavy Duty Chromoly wrist pins, pin fit, wire locks, broached double pin oilers, and accumulator groove are included at no extra charge
    • Diamond tooling used throughout production including ring grooves and skirts for unrivaled tolerance control and finish

    RaceTec 1001764 Autotec Flat Top Piston Set Specs:

    • Engine Family: 312 Y Block Ford
    • Displacement reference: 318 cu. in. (5.2L)
    • Bore: 3.840 in.
    • Stroke: 3.438 in.
    • Rod Length: 6.252 in.
    • Compression Height: 1.780 in.
    • Crown Volume: 0 cc
    • Piston Style: Flat Top w/2 Valve Reliefs
    • Alloy: 4032
    • Wrist Pin Diameter: 0.990 in.
    • Ring Grooves: 1.5 mm Top, 1.5 mm Second, 3.0 mm Oil

    RaceTec 1001764 AutoTec Flat Top Piston Set Notes:

    • Requires RaceTec AT3845 Ring Set or Equivalent (Sold Separately)
    • Compression Ratios:
      • 9.3:1 @ w/70 cc Heads
      • 8.8:1 @ w/75 cc Heads
    • Will work with most 348 / 409 cylinder heads
  • Part TypePiston
    BrandRACETEC PISTONS
    Package Height6.0
    Package Width12.0
    Package Length12.0
    Weight12.0 PG
    Part CategoryPerformance Parts
    Pin Lock Rings IncludedYes
    Compression Height (In)1.78
    Bore (In)3.84
    Wrist Pin StylePress or Full Floating
    QuantitySet of 8
    Piston Head Volume0cc
    Engine Make/SizeFord Small Block
    Piston StyleFlat Top
    Compression Ratio70cc-9.3:1, 75cc-8.8:1
    Ring Thickness1.5 x 1.5 x 3.0 mm
    Piston MaterialForged 4032
    Pin Diameter (In)0.99
    Part FitmentSemi Universal
    Wrist Pin IncludedYes
    Snap Rings IncludedYes
    Vendor Part Number1001764
    Package Qty1
    Package TypeEA
