PDM-12SS-STD PDM-12 Super Street Power Distribution Module [Lighting, Power Windows]
InfoVehicle Info Needed
RACEWIRE SOLUTIONSPART NUMBER: 732-PDM-12SS-STD

PDM-12SS-STD PDM-12 Super Street Power Distribution Module [Lighting, Power Windows]

$55000
ShippingShips Tomorrow
Lowest PriceLowest Price Guarantee

Items You Need

Dielectric Grease, 1 oz. Tube

JEGS

Dielectric Grease, 1 oz. Tube

Part Number : 555-28020
$499$5.99
You Save$1.00
Dielectric Grease, 8 oz. Brush Top Bottle

JEGS

Dielectric Grease, 8 oz. Brush Top Bottle

Part Number : 555-28021
$1899$20.99
You Save$2.00
Heavy Duty Circuit Tester for 6, 12 & 24 Volt Systems

JEGS

Heavy Duty Circuit Tester for 6, 12 & 24 Volt Systems

Part Number : 555-80569
$899$9.99
You Save$1.00
Digital Multimeter

JEGS

Digital Multimeter

Part Number : 555-W2971
$1999$21.99
You Save$2.00

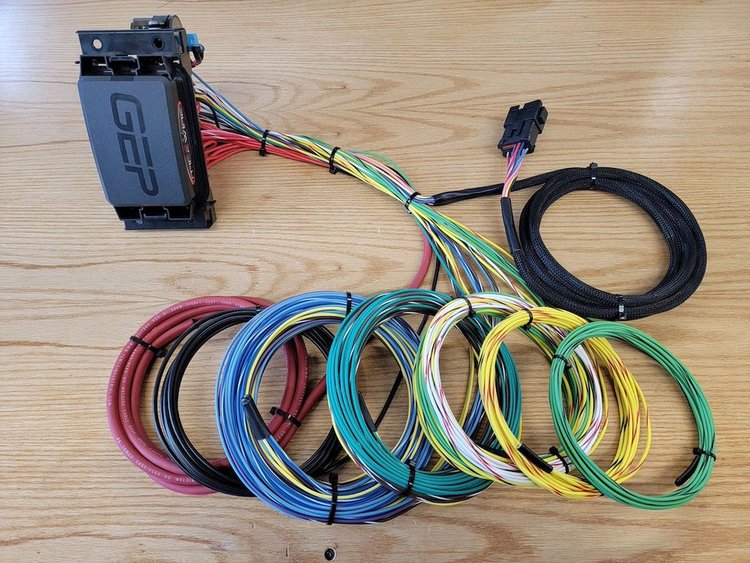

PDM-12 Super Street Power Distribution Module
  • Controls Lighting, Horn, And Dual Power Windows in One Fully Pre-Wired Module
  • LED-capable Flasher Module Included
  • 15 ft. Output Harness With 6 ft. Input Harness
  • Sold Individually

    The RaceWire Solutions Power Distribution Module is a fully pre-wired control center designed to manage key vehicle electrical functions in one package. It includes 2 low-beam outputs, 2 high-beam outputs, 4 parking light outputs, integrated 4-corner turn signals and brake lights, a 35 amp horn relay, and dual power window control with independent operation. An LED-capable flasher module, 15 ft. output harness, and 6 ft. input harness with Deutsch-Style connector support plug-and-play installation.

    RaceWire Solutions PDM-12SS-STD Power Distribution Box Features:

    • Pre-wired PDM-12 module: Controls lighting, horn, and power windows in one plug-and-play package with included wiring.
    • Lighting circuit coverage: Runs 2 low-beam outputs, 2 high-beam outputs, 4 parking light outputs, plus turn and brake lights.
    • Dual power window control: Provides independent operation for both windows, helping simplify street-rod electrical integration.
    • LED-capable flasher module: Supports modern LED lighting setups while maintaining integrated 4-corner turn signal function.
    • 15 ft. output harness: Includes a 6 ft. input harness with Deutch connector for cleaner installation and easier hookup.
  • Part TypePower Distribution Box
    BrandRACEWIRE SOLUTIONS
    Package Height7.0
    Package Width9.0
    Package Length13.0
    Weight10.0 PG
    Part CategoryPerformance Parts
    Wiring Harness IncludedYes
    Led Flasher IncludedYes
    Pre-WiredYes
    QuantitySold individually
    Connectors IncludedYes
    Part FitmentSemi Universal
    Vendor Part NumberPDM-12SS-STD
    Package Qty1
    Package TypeEA
