The RaceWire Solutions Relay distributes power through an 8-circuit MVEC relay module for drag race, off-road, and street car electrical systems. Severe-duty construction includes IP66 sealing, a durable plastic housing with a Gortex vent, and internal silicone gasketing for high-vibration environments. It supports up to 200 amps, features eight 35 amp relay circuits, keyed color-coded connectors, M8 input studs, and includes fuses, relays, diodes, and circuit breakers.

RaceWire Solutions RWS-MVEC8 Relay Features:

• IP66-sealed housing: Internal silicone gasketing and a Gortex vent help resist moisture and contamination in severe-duty installs.
• 8 relay circuits: Eight 35 amp fused outputs deliver organized, compact power distribution for race, off-road, and street cars.
• 200 amp capacity: Supports demanding electrical loads with 30 amps per output pin and 100 amps per output connector.
• Keyed connector system: Color-coded plugs simplify routing and reduce wiring mistakes versus universal relay-style boards.

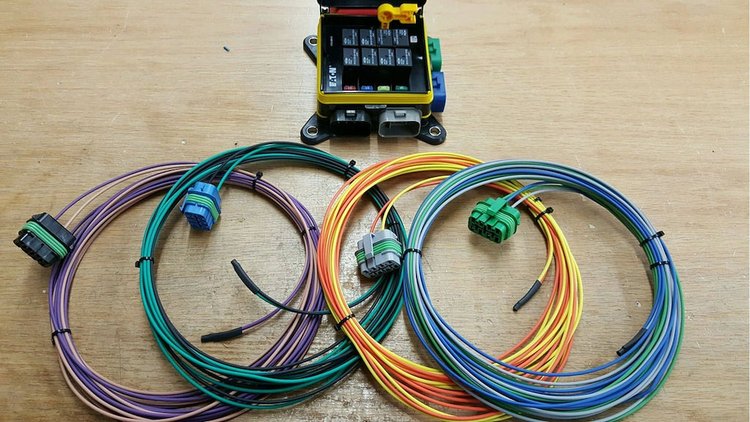

• Included harness package: Comes with 15 ft. output harnesses, 10 ft. input harness, and 6 ga power and ground cables.
