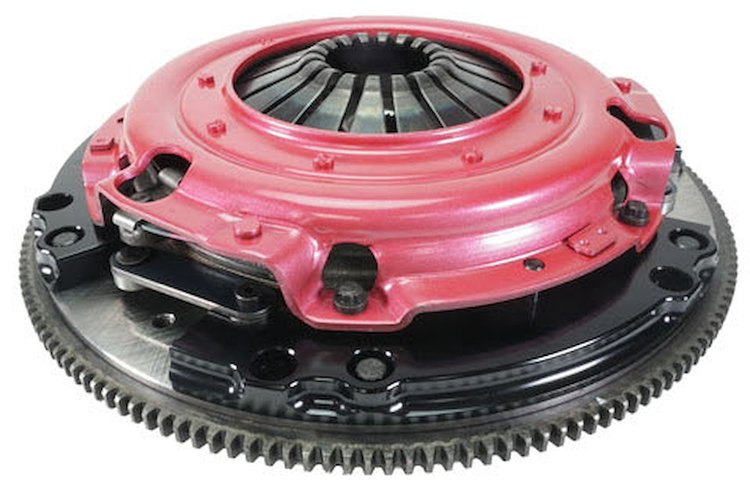

75-2259S Concept 9.5 Dual Disc Kit for Ford Small-Block ‘0’ Balance 157-Tooth 1 1/8-26 Spline

Name: 75-2259S Concept 9.5 Dual Disc Kit for Ford Small-Block ‘0’ Balance 157-Tooth 1 1/8-26 Spline
Brand: RAM CLUTCHES
SKU: 798-75-2259S
Price: 1150.00 USD
Availability: InStock

^$1,150⁰⁰

Ships on 09/15/2026

Lowest Price Guarantee

Ford

Concept 9.5 Dual Disc Kit

Fits Ford Mustang 5.0L V8 1985-1995 ‘0’ Balance 157-Tooth Flywheel

9.5 in. × 1 Thickness

1 1/8-26 Spline

Includes: Dual Discs with Sprung and Solid Hubs

Up to 650 HP

The 75-2259S Concept 9.5 Dual Disc Kit is engineered for Ford Small-Block applications using a ‘0’ balance 157-tooth billet steel flywheel. It combines a smooth pedal feel with increased holding capacity via a dual-disc layout and is built for high-performance up to 650 HP.

RAM Clutches 75-2259S Features:

Fits Ford Mustang 5.0L V8 1985-1995 with ‘0’ balance 157-tooth billet steel flywheel
9.5 in. diameter × 1 thickness; 1 1/8-26 spline input
Top disc: 300-series sprung hub; bottom disc: solid hub
Strap-driven floater plate eliminates floater-plate rattle
Designed for applications up to 650 HP
Made in the USA

RAM Clutches 75-2259S Includes:

Dual clutch discs (one sprung hub, one solid hub)
Strap-driven floater plate

RAM Clutches 75-2259S Notes:

Flywheel is billet steel, 157-tooth, ‘0’ balance specification
Requires 1 1/8-26 spline input shaft match
Kit not suitable for different spline or flywheel tooth count without modification

Dual-Disc Performance

Ram Concept 9.5 Dual-Disc Clutch Systems are the perfect entry level dual disc clutch system. Key features of the RAM Concept 9.5 include an increased clamp load pressure plate and 9.5-inch premium-faced organic or metallic clutch discs. The pressure plate provides a silky-smooth clutch pedal feel, while the dual disc provides additional holding capacity when compared to single disc systems. The Concept 9.5 unit also utilizes a sprung hub top disc that helps dampen and quiet the initial clutch engagement. A strap driven floater plate eliminates any floater plate rattle concerns.

Part TypeClutch Kit

Product LineRam Concept 9.5 Dual-Disc Clutch Systems

BrandRAM CLUTCHES

Package Height4.75

Package Width16.7

Package Length16.8

Weight56.0 PG

Part CategoryPerformance Parts

Disc Style1 sprung hub, 1 unsprung hub

Pressure Plate StyleDiaphragm

Throwout Bearing IncludedNo

QuantitySold as a kit
