Vehicle Info NeededRAM CLUTCHESPART NUMBER: 798-851

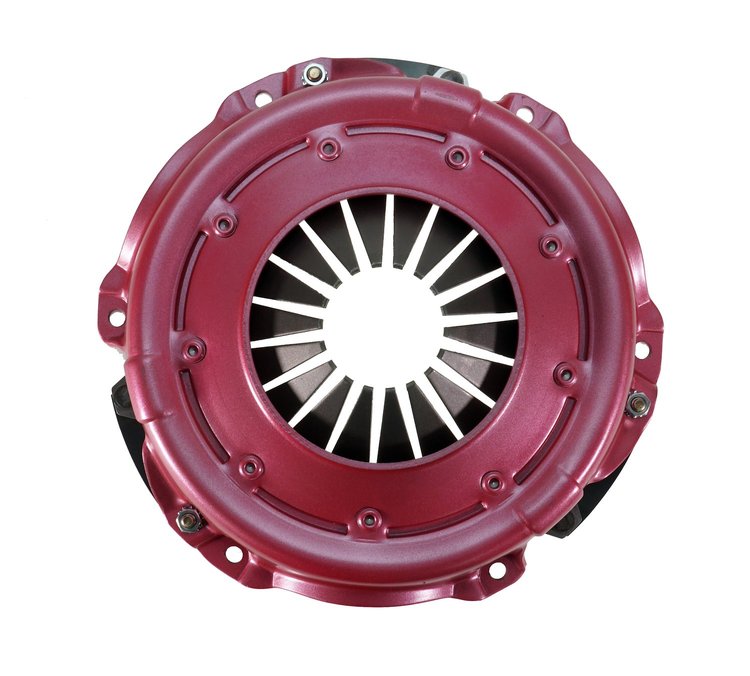

GM Diaphragm Competition Pressure Plate 10-1/2" Size 11-5/8" Bolt Circle
$34650$385.00You Save$38.50
Ships Tomorrow
Lowest Price GuaranteeGM Diaphragm Pressure Plates
- GM Diaphragm Competition Pressure Plate
- 10-1/2'' Size; 11-5/8'' Bolt Circle
- Lightened Billet Steel Pressure Ring
- 2800 lbs. Static Pressure
Diaphragm pressure plates are for street performance cars and trucks. These will provide the substantially increased clamp pressure necessary for high torque muscle car or crate motor street machines operating in a lower RPM range. RAM diaphragm clutches are approved for heavy-duty street and limited competition. For full race vehicles, please select RAM Long Style clutches with heavy duty covers. The new billet aluminum pressure ring models reduce rotating weight and feature segmented steel inserts that are designed to allow expansion and contraction under severe duty loads and maintains it's shape, with minimal warpage or distortion, better than a single piece insert during extreme heating and cooling cycles. The segments are also bolted in place, not riveted, to allow the unit to be serviced at the track or back at the shop instead of having to ship it out for repair!
Part TypeClutch Pressure Plate
BrandRAM CLUTCHES
Package Height3.2
Package Width13.9
Package Length14.0
Weight12.48 PG
Part CategoryPerformance Parts
Pressure Plate Static Pressure (Lbs.)3,000
Disc Diameter10.5 in (266.7 mm)
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
