Chevrolet
300-Series Clutch Disc
300-Series Clutch Disc

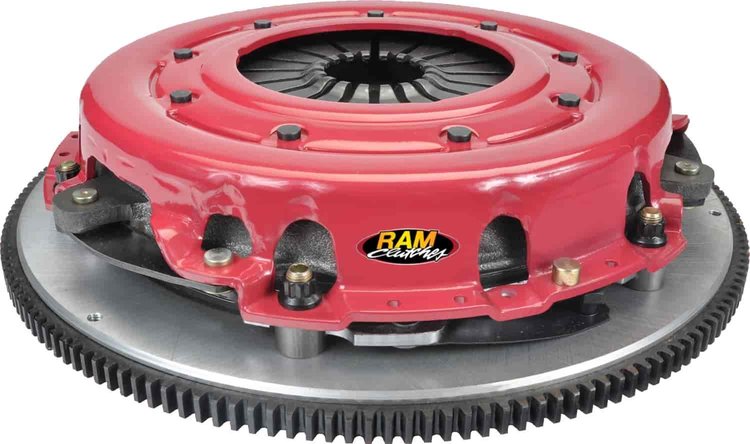

- RTrack 10.5 Dual Disc Clutch System
- GM LS1/LS2/LS3/LS6/LS7
- 10-1/2'' Diameter
- 1-1/8''-26 Spline
- 300-Series Disc
The RAM RTrack 10.5 has a stand driven floater plate provides ultimate holding power and durability for high horsepower street only cars and trucks. Featuring 300 series friction material, the clutch is smooth engaging and rated to handle torque capacity up to roughly 1100-foot pounds without excessive pedal pressure.
Applications & Installation Notes: - Fits Corvette 1997-2012 (2011-up ZR-1, use clutch system p/n 798-75-2115); Camaro/Firebird 1998-2002; Camaro 2010-12; GTO 2004-07; Cadillac CTS-V 2005-11 (Replacing dual mass flywheel requires .500' bearing spacer p/n 798-78511. Replacement input shaft required when replacing dual mass flywheel.)
- Camaro 2010-12 use RAM hydraulic throw-out bearing p/n 798-78180
- Camaro/Firebird 1998-02 use RAM hydraulic throw-out bearing p/n 798-78165
- Corvette 2005-2012 use RAM hydraulic throw-out bearing p/n 798-78170
- Corvette 1997-2004 use RAM hydraulic throw-out bearing p/n 798-78165
- GTO 2004-07 use RAM hydraulic throw-out bearing p/n 798-78180
Part TypeClutch Kit
BrandRAM CLUTCHES
Package Height4.2
Package Width15.2
Package Length15.3
Weight43.86 PG
Part CategoryPerformance Parts
Disc StyleFull face, sprung hub
Pressure Plate StyleDiaphragm
Throwout Bearing IncludedYes
QuantitySold as a kit
Mounting Hardware IncludedNo
Counterweight AssistNo
Flywheel IncludedYes
Pilot Bushing IncludedNo
Flywheel MaterialAluminum
Disc Diameter (Mm)267
Input Spline Quantity26 in (660.4 mm)
Disc Diameter10.5 in (266.7 mm)
Input Shaft Diameter1.125 in (28.575 mm)
Disc MaterialOrganic
Part FitmentSemi Universal
Alignment Tool IncludedNo
Vendor Part Number90-2100
Package Qty1
Package TypeEA
